Smida C02 Laser Cutting Machine Price List
Product details of the c02 laser cutting machine
Product Overview
Smida c02 laser cutting machine is manufactured in strict line with the production procedure. The product is carefully tested by professional QC staff in all respects, including durability, performance, etc. Smida's c02 laser cutting machine can be used in multiple industries and fields. Shenzhen Smida Intelligent Equipment Co., Ltd. can tailor our c02 laser cutting machine based on customer's requirements.
Product Introduction
Smida will present you the details of c02 laser cutting machine in the following section.
Non metallic material dedicated laser cutting machine
Main features:
1. High cutting quality
2. Fast cutting speed
3. Wide range of materials
4. High flexibility
5. High degree of automation
6. Environmental protection and energy conservation
1 unit for sale | 1 unit for customization
Support for multiple purchases | Global after-sales service

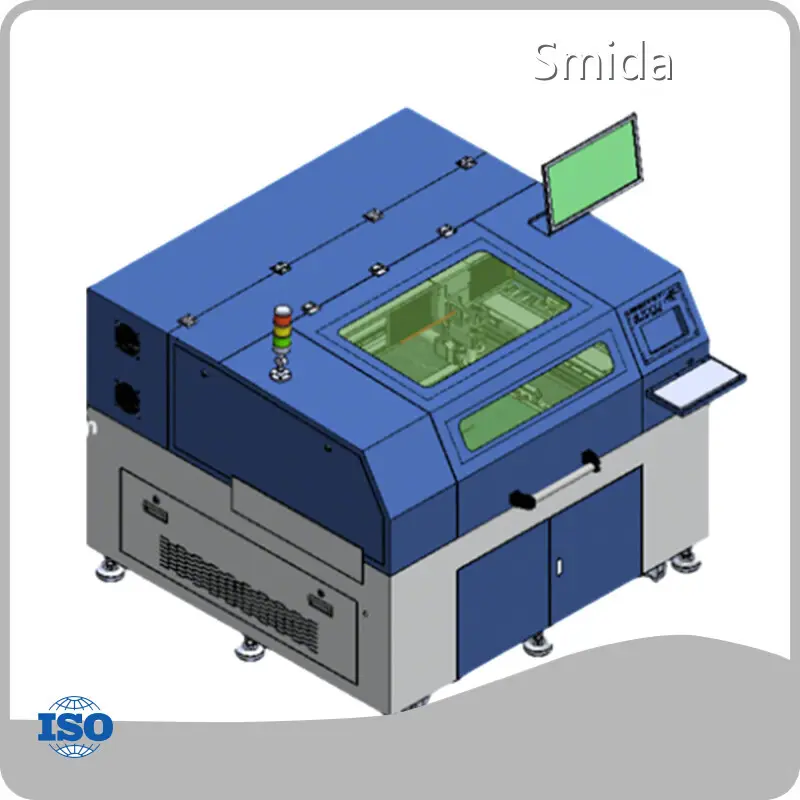

CO2 Laser Cutter
| Serial Number | Performance Indicators | Parameter |
| 1 | Machine name | CT-DCM-6555 |
| 2 | Model | CO2 laser cutting machine |
| 3 | Cutting range | 650*550mm |
| 4 | Positioning accuracy | ±20um |
| 5 | Comprehensive precision | ±50um |
| 6 | Laser type | Carbon dioxide RF laser |
| 7 | Laser power | 60W-150W |
| 8 | Wavelength | 9.3um/10.6um |
| 9 | Cooling method | Water/Air Cooled |
| 10 | CCD resolution | 500W |
| 11 | X-axis travel | 650mm |
| 12 | Y-axis travel | 550mm |
| 13 | Maximum X/Y single-axis speed | 800mm/s |
| 14 | Industrial vacuum system | Standard |
| 15 | File format | dxf format |
| 16 | Cutting system | SMIDA |
| 17 | Mains equipment supply voltage | 220V/50Hz |
| 18 | Air source (dry filtered air) | 0.5-0.6Mpa |
| 19 | Equipment external dimensions | L1550*W1470*H1105mm |
| 20 | Working environment | Temperature: 5℃-35℃; Humidity ≤60 |
| 21 | Weight | 1000kg |
Total power
Equipped with high power CO2 laser for high speed cutting efficiency.
Marble high-precision screw platform to meet the rapid cutting efficiency and effectiveness.
X/Y table adopts dynamic gantry structure, marble base, flying light path design, high stability.
The suction system can eliminate all the cutting exhaust gases, avoiding the hazards to the operators and pollution to the environment.
Total power
Fast cutting speed, good quality, high precision, meeting high-speed cutting efficiency.
High precision platform structure, high processing accuracy, and stable equipment performance.
Wide adaptability, able to cut most non-metallic materials and some metallic materials.
Non contact cutting eliminates damage caused by tool or material stress processing.
The suction system eliminates cutting waste gas and avoids the impact on personnel and the environment.
Company Information
Shenzhen Smida Intelligent Equipment Co., Ltd. is a company situated in shen zhen. We are mainly engaged in the production and sales of planetary centrifugal mixer,laser marking machine,laser cutting machine. After years of laborious development, Smida has a comprehensive service system. We have the ability to provide products and services for numerous consumers in time. We have been providing high quality c02 laser cutting machine for a long time. We look forward to working with you.
