Laser Cutting Machine Manufacturer Price List-1
Product details of the laser cutting machine manufacturer
Product Overview
Smida laser cutting machine manufacturer is designed to gain long-lasting popularity. The product has been tested with accurate data. The product, offered at an affordable price, is currently popular in the market and is believed to be more widely used in the future.
Product Description
The processing of laser cutting machine manufacturer is carried out with the most advanced technology in the industry to ensure that the following details are better.

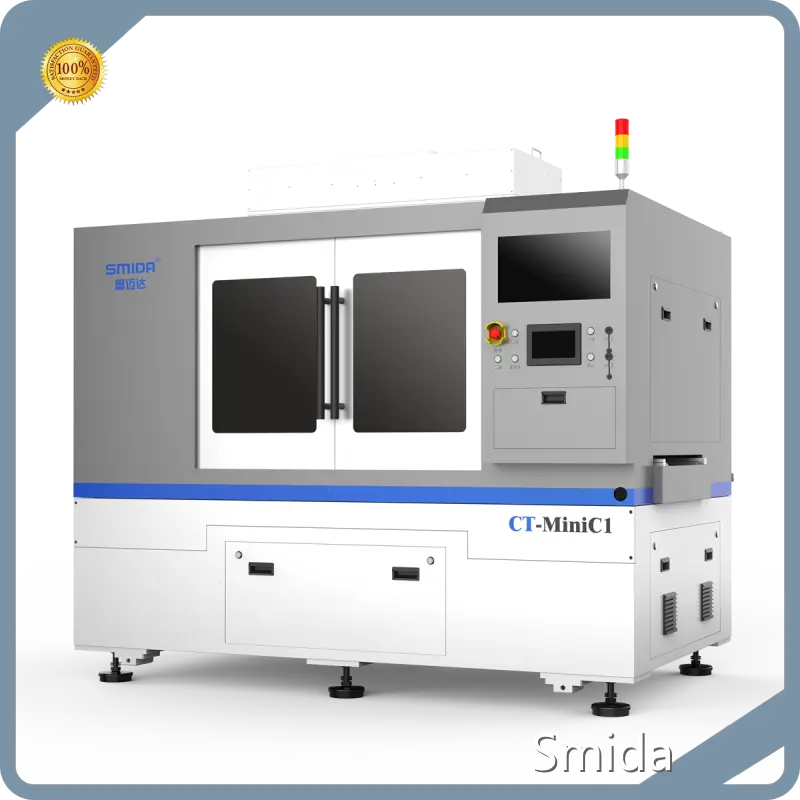

About CT-MiniC1
CT-MiniC1 is an online laser sub board machine.
We use fiber lasers with good optical modes and long lifetimes, which can cut metal materials below 2mm. The laser power can be selected according to the cutting material.
Online working mode, compatible with left in and right out, right in and left out, left in and left out, right in and right out, equipped with a dedicated industrial control computer, the entire process is automatically controlled by computer software, and the operation is simple.
Technical Parameter
Online laser sub-board machine
CT-MiniC1
| Configuration indicators | Parameter |
| Cutting heads | 2D/3D cutting head optional |
| Online working mode | Two section rail conveyor with automatic width adjustment |
| Cutting system | SMIDA |
| File formats | dxf format |
| MES system connection | Reserved interface, optional with customized information collection |
| Industrial vacuum cleaning system | Standard configuration |
| High-pressure air source (dry filtered air) | 1.2Mpa-1.5Mpa |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Online line height | 900±30mm |
| Rated voltage of main equipment power supply | 220V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Main equipment dimensions (L*W*H) | 2405x1560x2140(mm) |
| Weight | 2400kg |
| Total power | 9.3kW/h (including vacuum cleaner) |
| Work environment | Temperature 25 ℃± 2 ℃; Humidity ≤ 60% |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Performance index
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel | 1340mm |
| Y-axis travel | 680mm |
| Z-axis travel | 100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Metal materials such as aluminum substrate, copper substrate, aluminum alloy, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Company Advantages
Shenzhen Smida Intelligent Equipment Co., Ltd. is modern enterprise in the industry. And planetary centrifugal mixer,laser marking machine,laser cutting machine is a key product. Based on the operation tenet of 'manufacturing high-quality products, creating value for customers', our company seeks perfection in products and service, so as to promote a healthy and sustainable development. Our company has absorbed a group of experienced experts. And they provide a strong foundation for the production of quality products. Smida is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
If interested in our products, you are welcomed to contact customer service staff for consultation!
