Laser Cutting Machine Manufacturer CO2 Laser Wholesale - Smida
Product details of the laser cutting machine manufacturer
Product Overview
laser cutting machine manufacturer is fantastic with its unique shape. The product is inspected according to the industry standard to ensure no defect. Complete quality assurance service makes Smida win the customers from all directions.
Product Description
We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.
Non metallic material dedicated laser cutting machine
Main features:
1. High cutting quality
2. Fast cutting speed
3. Wide range of materials
4. High flexibility
5. High degree of automation
6. Environmental protection and energy conservation
1 unit for sale | 1 unit for customization
Support for multiple purchases | Global after-sales service

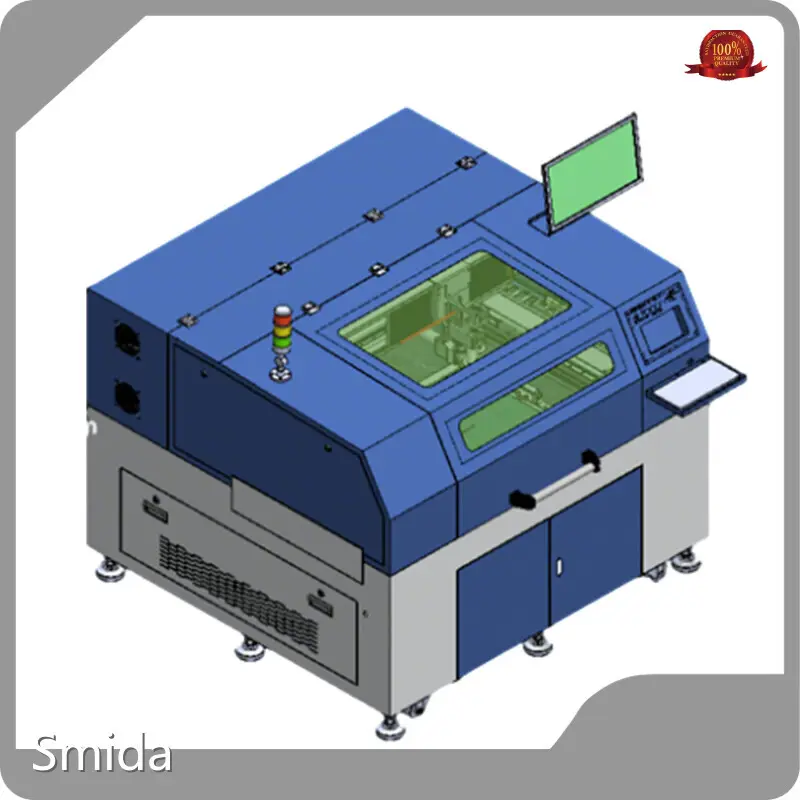

CO2 Laser Cutter
| Serial Number | Performance Indicators | Parameter |
| 1 | Machine name | CT-DCM-6555 |
| 2 | Model | CO2 laser cutting machine |
| 3 | Cutting range | 650*550mm |
| 4 | Positioning accuracy | ±20um |
| 5 | Comprehensive precision | ±50um |
| 6 | Laser type | Carbon dioxide RF laser |
| 7 | Laser power | 60W-150W |
| 8 | Wavelength | 9.3um/10.6um |
| 9 | Cooling method | Water/Air Cooled |
| 10 | CCD resolution | 500W |
| 11 | X-axis travel | 650mm |
| 12 | Y-axis travel | 550mm |
| 13 | Maximum X/Y single-axis speed | 800mm/s |
| 14 | Industrial vacuum system | Standard |
| 15 | File format | dxf format |
| 16 | Cutting system | SMIDA |
| 17 | Mains equipment supply voltage | 220V/50Hz |
| 18 | Air source (dry filtered air) | 0.5-0.6Mpa |
| 19 | Equipment external dimensions | L1550*W1470*H1105mm |
| 20 | Working environment | Temperature: 5℃-35℃; Humidity ≤60 |
| 21 | Weight | 1000kg |
Total power
Equipped with high power CO2 laser for high speed cutting efficiency.
Marble high-precision screw platform to meet the rapid cutting efficiency and effectiveness.
X/Y table adopts dynamic gantry structure, marble base, flying light path design, high stability.
The suction system can eliminate all the cutting exhaust gases, avoiding the hazards to the operators and pollution to the environment.
Total power
Fast cutting speed, good quality, high precision, meeting high-speed cutting efficiency.
High precision platform structure, high processing accuracy, and stable equipment performance.
Wide adaptability, able to cut most non-metallic materials and some metallic materials.
Non contact cutting eliminates damage caused by tool or material stress processing.
The suction system eliminates cutting waste gas and avoids the impact on personnel and the environment.
Company Information
Shenzhen Smida Intelligent Equipment Co., Ltd. has been active in laser cutting machine manufacturer field for decades. Shenzhen Smida Intelligent Equipment Co., Ltd. can provide a variety of laser cutting machine manufacturer for your selection or customize for you. Smida insists on taking the market as our business direction. Check it!
We hope to cooperate with you for a win-win situation and jointly create a better future.
