Laser Cutting Machine Manufacturer by Smida-3
Product details of the laser cutting machine manufacturer
Product Information
Shenzhen Smida Intelligent Equipment Co., Ltd. focuses on the symbiotic relationship between stylish design and exquisite craftsmanship of laser cutting machine manufacturer. This product is able to satisfy customers with different requirements. . The service of Smida promotes the popularity of the brand in the industry.

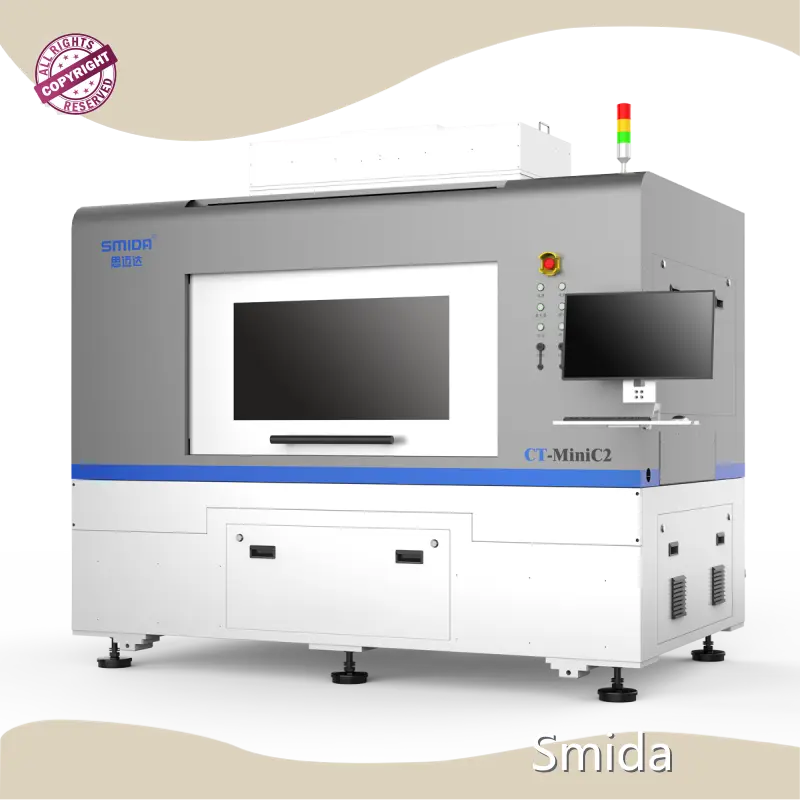

About CT-MiniC2
CT-MiniC2 is an offline laser sub board machine.
We use fiber lasers with good optical modes and long lifetimes, which can cut metal materials below 2mm. The laser power can be selected according to the cutting material.
The manual loading and unloading work mode is easy to operate, highly adaptable, and can be upgraded to an online work mode.
Performance index
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel | 1340mm |
| Y-axis travel | 680mm |
| Z-axis travel | 100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Technical Parameter
Offline laser sub-board machine
CT-MiniC2
| Configuration indicators | Parameter |
| Cutting heads | 2D/3D cutting head optional |
| Working mode | Manual loading and unloading of materials |
| Cutting system | SMIDA |
| File formats | dxf format |
| MES system connection | Reserved interface, optional with customized information collection |
| Industrial vacuum cleaning system | Standard configuration |
| High-pressure air source (dry filtered air) | 1.2Mpa-1.5Mpa |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Working height | 900±30mm |
| Rated voltage of main equipment power supply | 220V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Main equipment dimensions (L*W*H) | 2405x1560x2140(mm) |
| Weight | 2400kg |
| Total power | 9.3kW/h (including vacuum cleaner) |
| Work environment | Temperature 25 ℃± 2 ℃; Humidity ≤ 60% |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Metal materials such as aluminum substrate, copper substrate, aluminum alloy, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Company Advantage
• Smida was founded in Over the years, we strive to learn foreign and domestic advanced manufacturing experience and continuously improve production technology. We improve the corporate governance system and pursue excellence in development. We establish a good corporate image in the industry.
• Our company constantly optimizes management system and fostered an elite team. They are professional and have vocational ethics, who are a driving force for long term development.
• Our company wholeheartedly provides quality services for customers at home and abroad, so as to achieve mutual benefit and win-win results.
• The products that we provide are not only sold well to the domestic market, but also to some countries and regions like Europe, North America and Australia. And the products are favored by lots of customers overseas.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
