Product details of the vacuum mixer

Product Information

When manufacturing Smida vacuum mixer, we take the quality of raw materials into consideration. The product has precise specifications and functional parameters. With strong sense of responsibility, Smida staff are devoted themselves into producing exquisite vacuum mixer.

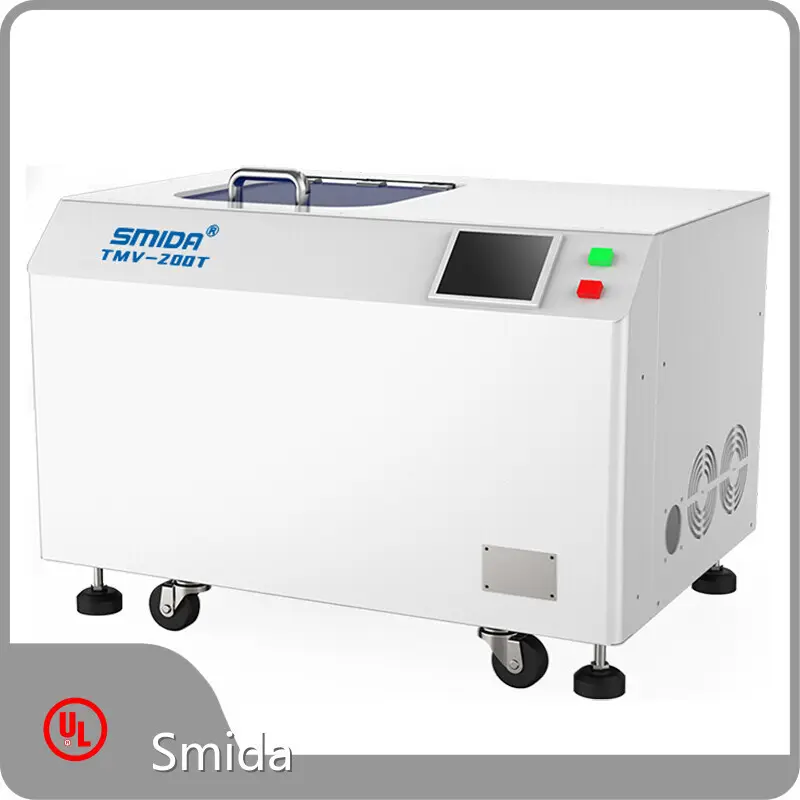

TMV-200T Planetary Centrifugal Vacuum Mixer

· Revolution speed - up to 2500rpm

· Mixing capacity - up to 300ml

· Material weight - up to 300g per time

· Motor power - up to 1.2kW

· Equipment size - L800*W550*H570mm

· Equipment weight - 120kg

Product Advantages

产品优势-3 (9)

产品优势-2 (9)

产品优势-1 (6)

By utilizing ultra-high stirring speed, materials with high viscosity can be stirred;

By using a high-power vacuum pump, nanoscale bubbles in the material can be removed;

By using stored programs, it is possible to repeatedly stir and mix the same formula materials;

By using different containers and fixtures, materials of different capacities can be stirred as needed.

Planetary Centrifugal Vacuum Mixer Description

Can quickly mix multiple materials evenly within 300ml/300g

The stirring process can simultaneously vacuum and remove bubbles

The application industry and materials are very extensive

Has ultra-high cost-effectiveness, low price, and good results

TMV-200T is the smallest capacity in the cost-effective version of the Smida vacuum stirring and defoaming machine,

The single stirring volume can reach 300ml/300g,

Equivalent with a high power vacuum pump, with a gas flow rate of 16m ³/  H,

In terms of speed, mixing capacity, program, etc., it can be almost identical to TMV-310T and can also handle the vast majority of materials.

Technical Parameter

Product Name	Vacuum Planetary centrifugal mixer
Model	TMV-200T
Working mode	Rotation, revolution, non-contact, vacuum
Max. mixing capacity	300ml/300g (2 cups)
Operating speed	Revolution: 100-2500rpm, rotation: fixed ratio of revolution to rotational speed
Max. running time	30mins
Display method	LCD
Power Supply	AC220V, 50Hz/60Hz
Power	1.2kW
Equipment size	800*550*570mm
Equipment weight	120kg

Application

Chemical Planetary Centrifugal Deaeration Mixing M

200t-2

300to150-1

The application industry of 200t vacuum planetary centrifugal mixer is also very extensive, with good applications in coatings, polymer materials, adhesives, printing materials, and so on.
