Smida Planetary Centrifugal Vacuum Mixer Price List
Product details of the planetary centrifugal vacuum mixer
Quick Overview
Smida planetary centrifugal vacuum mixer is manufactured by our experts who have been specialized in this field for many years. This product is highly regarded among customers, with high durability and high cost performance. Remarkable success has been achieved by Shenzhen Smida Intelligent Equipment Co., Ltd. in planetary centrifugal vacuum mixer field.
Product Information
Under the premise of ensuring the same price, the planetary centrifugal vacuum mixer that we develop and produce as a whole has been substantially improved in a scientific way, as shown in the following aspects.

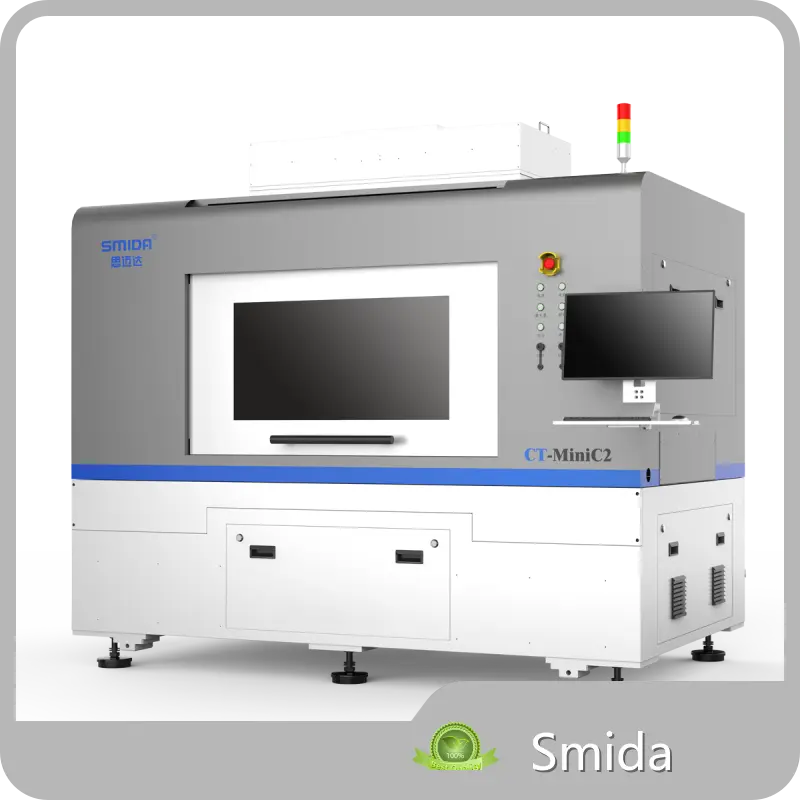

About CT-MiniC2
CT-MiniC2 is an offline laser sub board machine.
We use fiber lasers with good optical modes and long lifetimes, which can cut metal materials below 2mm. The laser power can be selected according to the cutting material.
The manual loading and unloading work mode is easy to operate, highly adaptable, and can be upgraded to an online work mode.
Performance index
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel | 1340mm |
| Y-axis travel | 680mm |
| Z-axis travel | 100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Technical Parameter
Offline laser sub-board machine
CT-MiniC2
| Configuration indicators | Parameter |
| Cutting heads | 2D/3D cutting head optional |
| Working mode | Manual loading and unloading of materials |
| Cutting system | SMIDA |
| File formats | dxf format |
| MES system connection | Reserved interface, optional with customized information collection |
| Industrial vacuum cleaning system | Standard configuration |
| High-pressure air source (dry filtered air) | 1.2Mpa-1.5Mpa |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Working height | 900±30mm |
| Rated voltage of main equipment power supply | 220V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Main equipment dimensions (L*W*H) | 2405x1560x2140(mm) |
| Weight | 2400kg |
| Total power | 9.3kW/h (including vacuum cleaner) |
| Work environment | Temperature 25 ℃± 2 ℃; Humidity ≤ 60% |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Metal materials such as aluminum substrate, copper substrate, aluminum alloy, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Company Introduction
Shenzhen Smida Intelligent Equipment Co., Ltd., located in shen zhen, is mainly dedicated to the business of planetary centrifugal mixer,laser marking machine,laser cutting machine. Our company believes that all services are for customers and our motivation comes from customer's satisfaction. Besides, we create and share value together. Based on that, we are committed to promoting development for the industry. Smida has a competent and aspirant team with strict working style. The team members make concerted efforts to overcome many difficulties during the development, which contributes to rapid and good development. We understand the actual situation of the market, and then combine the needs of customers. In this way, we develop the most suitable solutions for customers and effectively meet their needs.
We are committed to providing customers with quality products. We sincerely welcome customers with needs to contact us, and look forward to establishing a long-term friendly relation with you!
