Smida Laser Marking Machine Manufacturer Price List-1
Product details of the laser marking machine manufacturer
Product Introduction
As long as you make up your minds on laser marking machine manufacturer, we can provide feasible suggestions to pick the best one. The long-lasting performance and longer service life set the product apart from our competitors. Shenzhen Smida Intelligent Equipment Co., Ltd. increased efficiency in team-work.

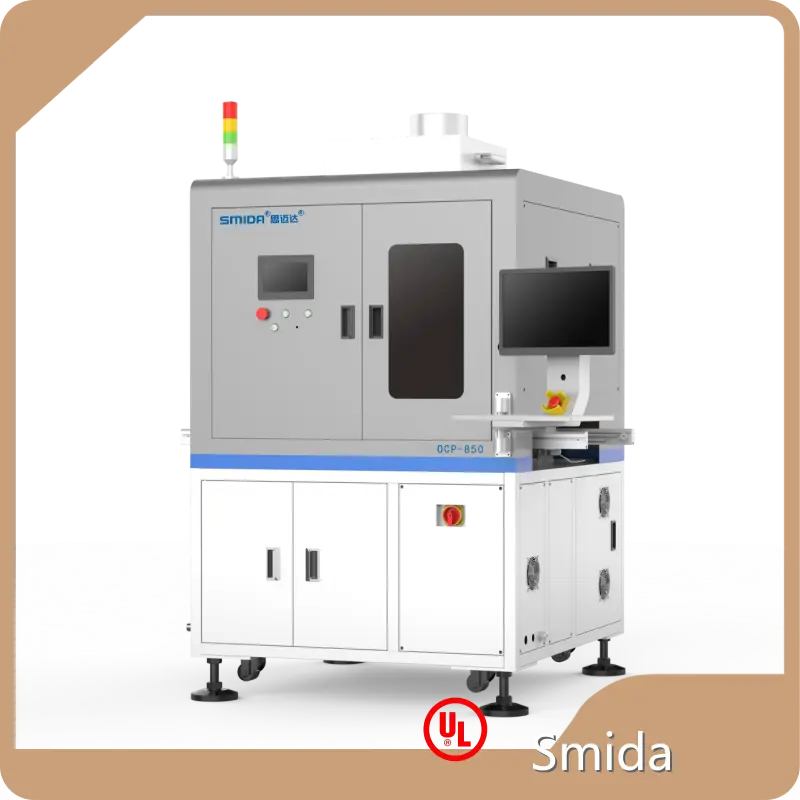

Plasma Cleaning Machine
OCP-850
——————
Cleaning Scope
L200-1200mm (＞ 850mm requires assistance from a docking station), W200-550mm
Cleaning Head
4
Clean the Corners of Water Droplets
20°-50°
Working Mode
Online, supports left in and right out, right in and left out, left in and left out, right in and right out
Highest Accuracy
±0.05mm
You can contact SMIDA for issues related to plasma surface treatment and plasma cleaning.
With the continuous development of science and technology and the increasing demand for traditional material properties in some high-tech fields, plasma technology has been widely applied in cutting-edge technology fields such as materials science, polymer science, biomedical, environmental science, and optical materials due to its advantages of short time, high efficiency, and energy conservation and environmental protection.
Advantages of SMIDA
plasma cleaning machine
Plasma cleaning modification only occurs on the surface layer of the material, does not affect the inherent properties of the substrate, and has good treatment uniformity.
By using plasma to perform nanoscale micro etching on the surface of an object, the smoothness of its surface can be reduced, greatly improving adhesion.
By using plasma to activate the surface of materials, the hydrophilicity and activity of the material surface are stimulated, thereby improving the strength of adhesive bonding.
Online processing to meet the requirements of wiring.
Suitable for Mini direct display, Mini backlight, adhesive film, glass substrate, OCA, PET, PC, FPC and other materials.
For details, please contact SMIDA
Main technical parameters of the machine
Model |
OCP - 850 |
Product Name |
Plasma Cleaning Machine |
Cleaning Range |
L200 - 1200mm (Auxiliary stage required for >850mm), W200 - 550mm | ||
Working Mode |
Online type, supporting left-in-right-out, right-in-left-out, left-in-left-out, right-in-right-out | ||
Cleaning Water Drop Angle |
20° - 50° |
Cleaning Head |
4 pcs |
Highest Precision |
±0.05mm |
Platform Repeatability |
±0.05mm |
Comprehensive Precision |
±0.1mm |
Working Height |
900±30mm |
Y-axis Stroke |
650mm |
Z-axis Stroke |
50mm |
Max. Speed of Y/Z Single Axis |
500mm/s |
Working Environment |
Temperature 25℃±2℃; Humidity ≤60%; No condensation |
Industrial Dust Collection System |
Standard configuration |
Operating System |
SMIDA |
Main Equipment Power Supply |
220V，50Hz |
Total Power |
6.5KW |
Overall Dimension of Main Equipment |
L1460*W1720*H1830mm |
Weight |
520kg |
Company Advantage
• Smida's professional technical talents provide a strong guarantee for the R&D and production of high-quality products.
• Smida has a great geographical location with quite a few railways and highways nearby, which provides convenience for transportation.
• Smida was founded in For many years, we have been making progress and advancing with the times. We have constantly learned advanced manufacturing technology at home and abroad and have introduced professional production equipment. This enables us to maintain our leading position in the fierce competition.
• We have a perfect and mature service team. Based on this, we can provide you with excellent services to seek mutual benefit and create a better future!
Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!
