Planetary Centrifugal Vacuum Mixer Price List-1
Product details of the planetary centrifugal vacuum mixer
Product Introduction
In conformity with the industry standards, Smida planetary centrifugal vacuum mixer is manufactured with top-notch raw materials. The new features of area of planetary centrifugal vacuum mixer would make it highly marketable. Shenzhen Smida Intelligent Equipment Co., Ltd. has established unsurpassed customer partnerships with many famous brands in domestic market.
Non metallic material dedicated laser cutting machine
Main features:
1. High cutting quality
2. Fast cutting speed
3. Wide range of materials
4. High flexibility
5. High degree of automation
6. Environmental protection and energy conservation
1 unit for sale | 1 unit for customization
Support for multiple purchases | Global after-sales service

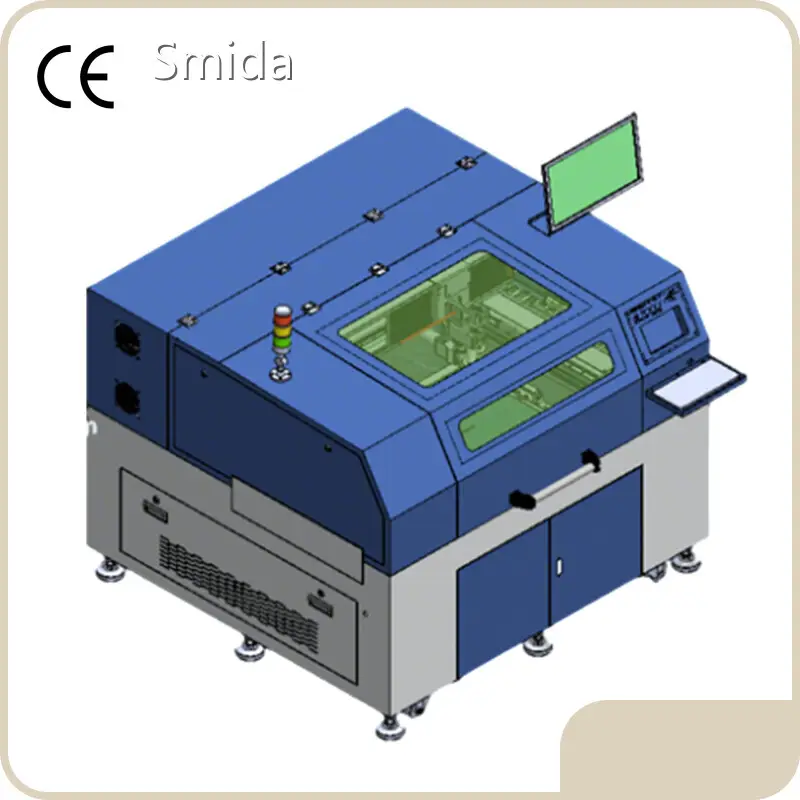

CO2 Laser Cutter
| Serial Number | Performance Indicators | Parameter |
| 1 | Machine name | CT-DCM-6555 |
| 2 | Model | CO2 laser cutting machine |
| 3 | Cutting range | 650*550mm |
| 4 | Positioning accuracy | ±20um |
| 5 | Comprehensive precision | ±50um |
| 6 | Laser type | Carbon dioxide RF laser |
| 7 | Laser power | 60W-150W |
| 8 | Wavelength | 9.3um/10.6um |
| 9 | Cooling method | Water/Air Cooled |
| 10 | CCD resolution | 500W |
| 11 | X-axis travel | 650mm |
| 12 | Y-axis travel | 550mm |
| 13 | Maximum X/Y single-axis speed | 800mm/s |
| 14 | Industrial vacuum system | Standard |
| 15 | File format | dxf format |
| 16 | Cutting system | SMIDA |
| 17 | Mains equipment supply voltage | 220V/50Hz |
| 18 | Air source (dry filtered air) | 0.5-0.6Mpa |
| 19 | Equipment external dimensions | L1550*W1470*H1105mm |
| 20 | Working environment | Temperature: 5℃-35℃; Humidity ≤60 |
| 21 | Weight | 1000kg |
Total power
Equipped with high power CO2 laser for high speed cutting efficiency.
Marble high-precision screw platform to meet the rapid cutting efficiency and effectiveness.
X/Y table adopts dynamic gantry structure, marble base, flying light path design, high stability.
The suction system can eliminate all the cutting exhaust gases, avoiding the hazards to the operators and pollution to the environment.
Total power
Fast cutting speed, good quality, high precision, meeting high-speed cutting efficiency.
High precision platform structure, high processing accuracy, and stable equipment performance.
Wide adaptability, able to cut most non-metallic materials and some metallic materials.
Non contact cutting eliminates damage caused by tool or material stress processing.
The suction system eliminates cutting waste gas and avoids the impact on personnel and the environment.
Company Advantage
• Adhering to the 'customer first' principle, our company builds a good sales service system, and promises to provide customers with quality pre-sales, sales, after-sales service.
• Smida was founded in In the past years, we have been focusing on the design, production, and sales of machinery. We enjoy a good reputation in the industry.
• With a comprehensive team management system, Smida has a dedicated production team and an R&D team with advanced technology. We also have a sales team who is really familiar with the business. And our professional service team sincerely provide you with services that satisfy customers' needs. All these promote corporate development.
• Smida is located at the intersection of different highways. The great geographic location, traffic convenience, and easy distribution make it an ideal place for the sustainable development of the enterprise.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
