Product details of the laser marking machine manufacturers
Product Overview
The design of Smida laser marking machine manufacturers can be customized to meet various target markets. Professional testing allows laser marking machine manufacturers to be optimal. Shenzhen Smida Intelligent Equipment Co., Ltd. has highly qualified and experienced staff for laser marking machine manufacturers.
Product Description
Compared with its peer products, laser marking machine manufacturers produced by Smida has the following advantages.
Full Automatic Laser Marking Machine
CS-60DV
SMIDA is not only a seller of laser marking equipment, but more importantly, it provides customers with comprehensive solutions for laser marking.
Reminder:
Laser marking can mark many products with a wide range of materials. If you have any questions or want to find the equipment you need more quickly, you can click to contact us at any time for direct communication.
Laser Marking Machine Description
Laser Marking Machine Application
Various support materials such as PPA, EMC, PCT, filament, ceramic substrate, and aluminum substrate.
Laser Marking Machine Advantages
The Smida laser marking machine has years of technical strength, fast marking speed, high marking accuracy of 0.03mm, zero consumables, environmental protection, high-quality laser light source, permanent marking effect, and can achieve ultra fine marking.
Laser Marking Effect

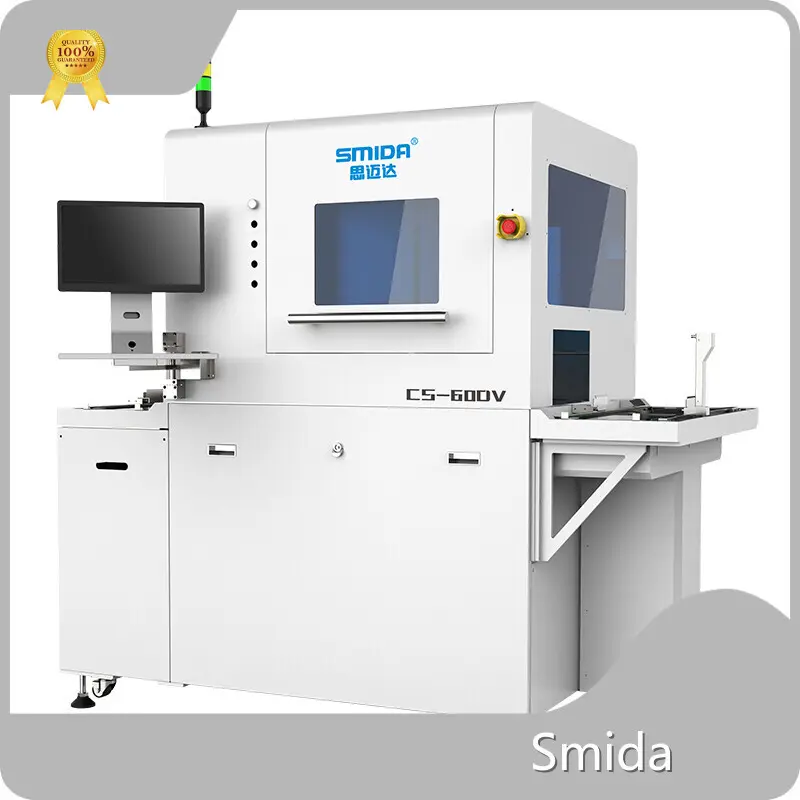

Laser marking machine -CS-60DV
● Equipped with a powerful vacuum suction system, it only comes into contact with silicon suction cups and will not damage the material sheets.
● Equipped with high-precision color photoelectric sensors, it can accurately distinguish between the material sheet and the isolation paper, avoiding the material sheet from being sucked away.
● Equipped with a dual hopper feeding system, the machine does not stop when replacing the material pieces.
● Equipped with a multi material box receiving system, replacing the material box does not require stopping the machine, improving work efficiency.
According to different customer requirements, multiple machine configurations are available for selection:
● You can choose between single or double laser marking machines;
● You can choose whether to equip a CCD visual alignment system.
● Other.
| Model | CS-60DV | Product Name | Fully Automatic Laser Marking Machine |
| Laser Type | UV Laser(Fiber optic and CO2 laser optional) | Laser Power | 3-10W |
| Wavelength | 355nm | Laser Brand | Guangbo (optional) |
| Marking Range | L60-160, W40-60mm | Laser Cooling Method | Air cooling/Water cooling |
| Marking Efficiency | 300-2000 pcs/h (depends on marking materials) | Positioning Accuracy | ±0.03mm |
| Repeatability Accuracy | ±0.03mm | Standard Marking Line Width | ±0.02mm (depends on marking materials) |
| Minimum Character Height | 0.08mm | Galvo Marking Speed | ≤7000mm/s |
| CCD Resolution | 5 million | Feeding Tray Capacity | 4-8 pcs |
| Marking Software | Jinchenzi/Dazhu | Power Supply | AC220V, 50Hz/60Hz, 2.5kW |
| Weight | 700kg | Overall Dimensions | L1660*W1100*H1720mm |
FAQ
Company Information
Shenzhen Smida Intelligent Equipment Co., Ltd., referred to as Smida, mainly runs the business of planetary centrifugal mixer,laser marking machine,laser cutting machine. Our company persists in the concept of 'faithful management, continuous improvement', and the tenet of 'quality oriented, customer first'. Based on this, we seek to provide customers with all-round quality services while achieving considerable development. We look forward to working with all new and old customers to create brilliant future. With the rich and deep understanding of industry know-how, Smida's production personnel are proficient in the whole production process. All this provides strong support for the production of high-quality products. Before developing a solution, we will fully understand the market situation and customer's needs. In this way, we can provide effective solutions for our customers.
Customers who need our products are welcomed to contact us for consultation.
