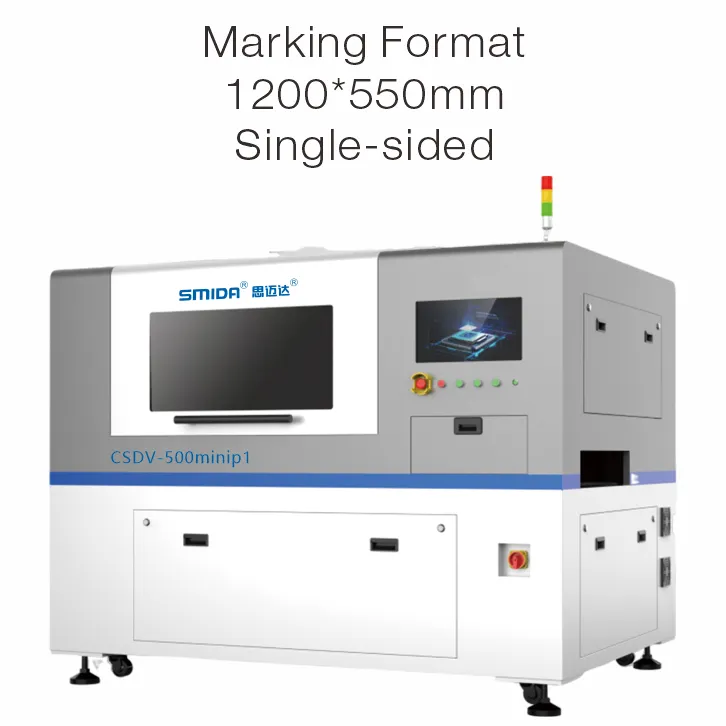

Single Sided 1200 * 500mm Automatic Online Laser Marking Machine CSDV-500minip1
UV laser, fiber laser, CO2 laser, green laser optional laser marking machine
The automatic online laser marking machine CSDV-500minip1 is one of the main products of SMIDA laser marking machine. CSDV-500minip1 has the advantages of online processing, automated process integration, efficient marking, fine text, QR code, pattern marking, clear and durable marking, etc. The whole machine is easy to operate, with one click control for startup and shutdown. Very suitable for production line processing operations, convenient for quick matching with other automation equipment. It has the characteristics of high-quality laser beam, fine spot, no need for consumables, and simple software operation.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
SMIDA is not only a seller
of laser marking equipment,
but moreimportantly,
it provides customers with
comprehensive solutions for
laser marking.
REMINDER:
Laser marking can mark many products with
a wide range of materials. If you have any
questions or want to find the equipment you
need more quickly, you can communicate
directly with our online customer service
at any time.
Automatic Online
Laser Marking Machine
Our Case - What We Can Do
Equipped with high-quality ultraviolet and fiber lasers,
it can accurately and efficiently complete any graphic or text marking such as one-dimensional codes and two-dimensional codes.
Laser Marking
QR CODE
TEXY
TEXY
Laser Marking
QR CODE
Product configuration
| Model | CSDV-500minip1 |
| Laser | 5W (UV laser, fiber laser, CO2 laser, green laser optional) |
| Marking scope | 1200*550mm |
| Marking range | 150*150/110*110mm |
| Marking efficiency | 1-2 seconds/code (5mm * 5mm QR code) |
| Power | AC 220V, 50Hz/60Hz, 6.3kW(including chiller and dust collector) |
| Size | L1810*W1653*H1900mm |
| Weight | 800kg |
Product Advantages
By choosing SMIDA, we will have a professional team to provide you with laser marking solutions from design, manufacturing, sales, and after-sales.
Source manufacturer
Having been in the industry for years, we know the market situation and industry requirements more clearly than most manufacturers.
Quality assurance
We have accumulated extensive knowledge about the quality standards as well as market needs of thesecountries.
Support customization
That is our highly-qualified employees. We have R&D experts, designers, QC professionals, and other highly qualified employees.
Professional team
They outperform their competitors when it comes to durability and performance, deeply trusted by both domestic andforeign customers.
Main technical parameters of the machine
| Equipment Name | Online Automatic Laser Marking Machine | Equipment Model | CSDV - 500minip1 |
| Marking Power | 5W (UV Laser, Fiber Laser, CO₂ Laser, Green Laser Optional) | ||
| Marking Range | 1200*550mm | Marking Area | 150*150/110*110mm |
| Working Efficiency | 1 - 2 seconds/code (Taking 5mm5mm QR code as an example) | Marking Line Speed | 4500mm/s |
| Minimum Marking QR Code | 3mm*3mm | Minimum Marking Character | 0.8mm |
| Maximum Marking Precision | ±0.05mm | Repeat Positioning Precision | ±0.02mm |
| Minimum Line Width | 0.02mm | ||
| Power Supply | AC220V，50/60Hz | Total Power of the Machine | 4kW (Including Chiller and Dust Extractor) |
| Weight of the Main Unit | 800kg | Overall Dimensions | L1810*W1653*H1900mm |
Product description
Excellent performance, permanently marked, easy to operate.
- Equipped with high-quality ultraviolet and fiber lasers, it can accurately and efficiently complete any graphic or text marking such as one-dimensional codes and two-dimensional codes.
- According to customer requirements, automatic skip codes for serial numbers, date and time, and specified databases can be implemented.
- Equipped with CCD visual positioning for high-precision marking, optional one-dimensional code and two-dimensional code automatic detection function for real-time product inspection.
- The minimum marking QR code can reach 3mm * 3mm, perfectly meeting the marking needs of small particles or products with insufficient space.
- A 5mm sized QR code mark only takes 1-2 seconds per piece.
- Laser coding is safer, more environmentally friendly, and cleaner than ink coding.
Applicable materials
Mini backlight board, PCB (PCBA), SMT light strip FPC、 Materials such as glass substrate, aluminum substrate, fingerprint module, communication products, etc.
Why choose laser marking machine？
| Dimension | Laser marking machine | Traditional marking (such as ink/stamping/corrosion) |
| Processing method | Non contact, laser beam action | Contact type (ink spraying, mechanical engraving/stamping) |
| Accuracy | Micron level (line width 0.02mm, accuracy ± 0.02mm) | Millimeter level (line width ≥ 0.1mm, accuracy ≤ 0.1mm) |
| Speed | 4500mm/s (1-2 seconds per code) | ≤ 100mm/s (single code ≥ 5 seconds, including consumables replacement) |
| Consumables | None (only consumes power) | Ink, molds, corrosive liquids, etc. (high cost) |
| Environmental Protection | No pollution (no waste liquid or exhaust gas) | Ink evaporation and corrosive liquid pollution (requiring environmental protection treatment) |
| Durability | Permanent clarity (wear-resistant, corrosion-resistant) | Easy to peel off, fade (ink)/deform (stamping) |
| Flexibility | Multi material, multi shape, quick changeover (software image modification) | Single material/shape, mold replacement required (long cycle) |
| Automation | Full process automation (integrated production line, visual system) | Semi automated (requiring manual intervention, such as changing ink cartridges and adjusting molds) |
