Laser Marking Machine Manufacturers by Smida
Product details of the laser marking machine manufacturers
Product Overview
Our laser marking machine manufacturers has its own style than other products thanks to the support of our excellent staff. After testing many time, the product lasts longer than most similar products. Process quality control, reliability testing, and shipping inspection systems, strong quality management systems are used as guarantees for production in Shenzhen Smida Intelligent Equipment Co., Ltd..
Product Information
With a focus on product quality, Smida strives for quality excellence in the production of laser marking machine manufacturers.

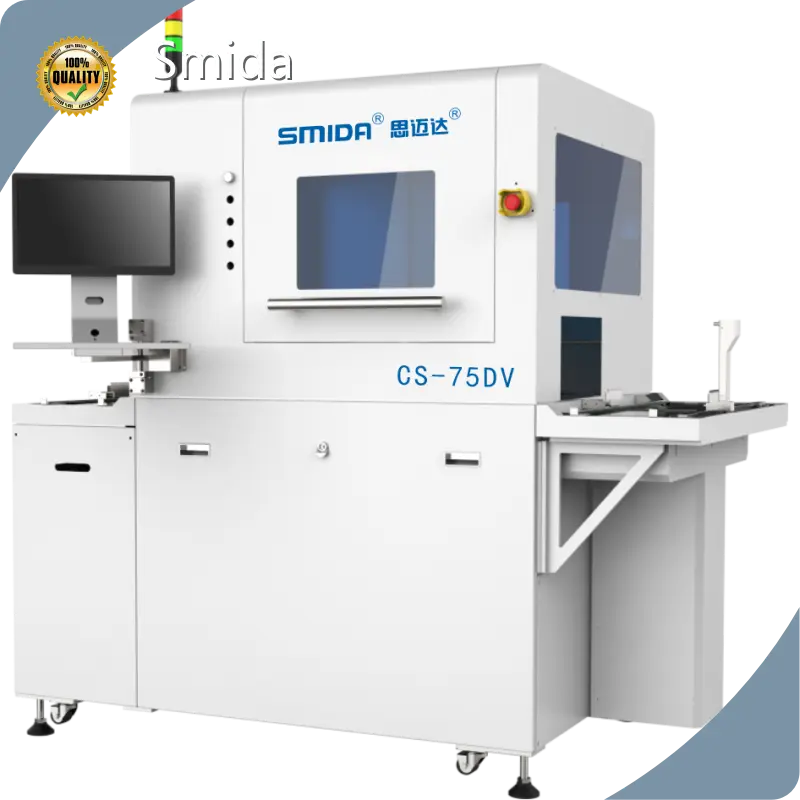

Full Automatic Laser Marking Machine
CS-75DV
SMIDA is not only a seller of laser marking equipment, but more importantly, it provides customers with comprehensive solutions for laser marking.
Reminder:
Laser marking can mark many products with a wide range of materials. If you have any questions or want to find the equipment you need more quickly, you can click to contact us at any time for direct communication.
Difference from CS-60DV
Larger marking range and larger equipment size
Laser Marking Machine Description
Laser Marking Machine Advantage
Laser Marking Machine Application
Various support materials such as PPA, EMC, PCT, filament, ceramic substrate, and aluminum substrate.
Laser Marking Effect
Laser marking machine -CS-60DV
● Equipped with a powerful vacuum suction system, it only comes into contact with silicon suction cups and will not damage the material sheets.
● Equipped with high-precision color photoelectric sensors, it can accurately distinguish between the material sheet and the isolation paper, avoiding the material sheet from being sucked away.
● Equipped with a dual hopper feeding system, the machine does not stop when replacing the material pieces.
● Equipped with a multi material box receiving system, replacing the material box does not require stopping the machine, improving work efficiency.
According to different customer requirements, multiple machine configurations are available for selection:
● You can choose between single or double laser marking machines;
● You can choose whether to equip a CCD visual alignment system.
● Other.
| Model | CS-75DV | Product Name | Fully Automatic Laser Marking Machine |
| Laser Type | UV Laser(Fiber optic and CO2 laser optional) | Laser Power | 3-10W |
| Wavelength | 355nm | Laser Brand | Guangbo (optional) |
| Marking Range | L60-260, W40-80mm | Laser Cooling Method | Air cooling/Water cooling |
| Marking Efficiency | 300-2000 pcs/h (depends on marking materials) | Positioning Accuracy | ±0.03mm |
| Repeatability Accuracy | ±0.03mm | Standard Marking Line Width | ±0.02mm (depends on marking materials) |
| Minimum Character Height | 0.08mm | Galvo Marking Speed | ≤7000mm/s |
| CCD Resolution | 5 million | Feeding Tray Capacity | 4-8 pcs |
| Marking Software | Jinchenzi/Dazhu | Power Supply | AC220V, 50Hz/60Hz, 2.5kW |
| Weight | 700kg | Overall Dimensions | L1720*W1140*H1780mm |
FAQ
Company Information
Shenzhen Smida Intelligent Equipment Co., Ltd. is professional enough to provide the most attentive service and the best laser marking machine manufacturers. Our company has responsible designers. They are always willing to spend a good chunk of time looking for inspiration to create a sought--after product for our customers. Smida brand will further develop service quality. Get more info!
All customers are sincerely welcomed to contact us for consultation!
