Laser Cutting Machine Price List
Product details of the laser cutting machine
Product Introduction
When it comes to comparing with other products, our laser cutting machine is of greater appearance. It is in high accordance with the quality inspection standards. The firm quality awareness is also factor which contributes the high quality of laser cutting machine.

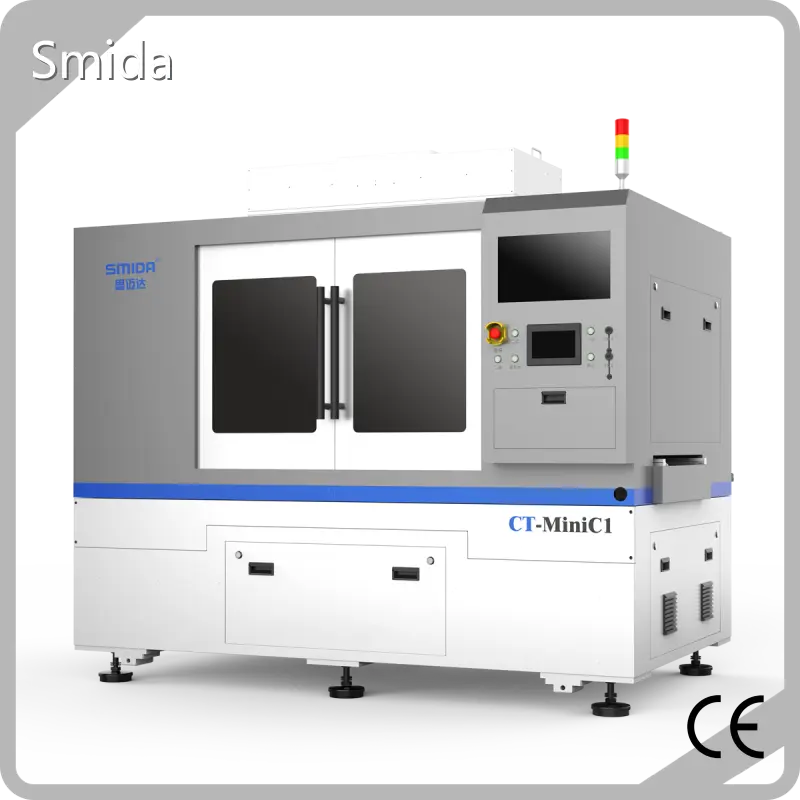

About CT-MiniC1
CT-MiniC1 is an online laser sub board machine.
We use fiber lasers with good optical modes and long lifetimes, which can cut metal materials below 2mm. The laser power can be selected according to the cutting material.
Online working mode, compatible with left in and right out, right in and left out, left in and left out, right in and right out, equipped with a dedicated industrial control computer, the entire process is automatically controlled by computer software, and the operation is simple.
Technical Parameter
Online laser sub-board machine
CT-MiniC1
| Configuration indicators | Parameter |
| Cutting heads | 2D/3D cutting head optional |
| Online working mode | Two section rail conveyor with automatic width adjustment |
| Cutting system | SMIDA |
| File formats | dxf format |
| MES system connection | Reserved interface, optional with customized information collection |
| Industrial vacuum cleaning system | Standard configuration |
| High-pressure air source (dry filtered air) | 1.2Mpa-1.5Mpa |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Online line height | 900±30mm |
| Rated voltage of main equipment power supply | 220V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Main equipment dimensions (L*W*H) | 2405x1560x2140(mm) |
| Weight | 2400kg |
| Total power | 9.3kW/h (including vacuum cleaner) |
| Work environment | Temperature 25 ℃± 2 ℃; Humidity ≤ 60% |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Performance index
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel | 1340mm |
| Y-axis travel | 680mm |
| Z-axis travel | 100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Metal materials such as aluminum substrate, copper substrate, aluminum alloy, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Company Advantage
• Smida's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
• Smida is committed to providing satisfactory services for customers.
• Founded in Smida has many years of experience in machinery manufacturing. The machinery is trusted and favored by most customers for the good quality and reasonable price.
• With a focus on talents development, Smida has a talent team mainly engaged in scientific research. They provide technical support for us to develop and innovate our products.
Welcome all customers in need to purchase our products.
