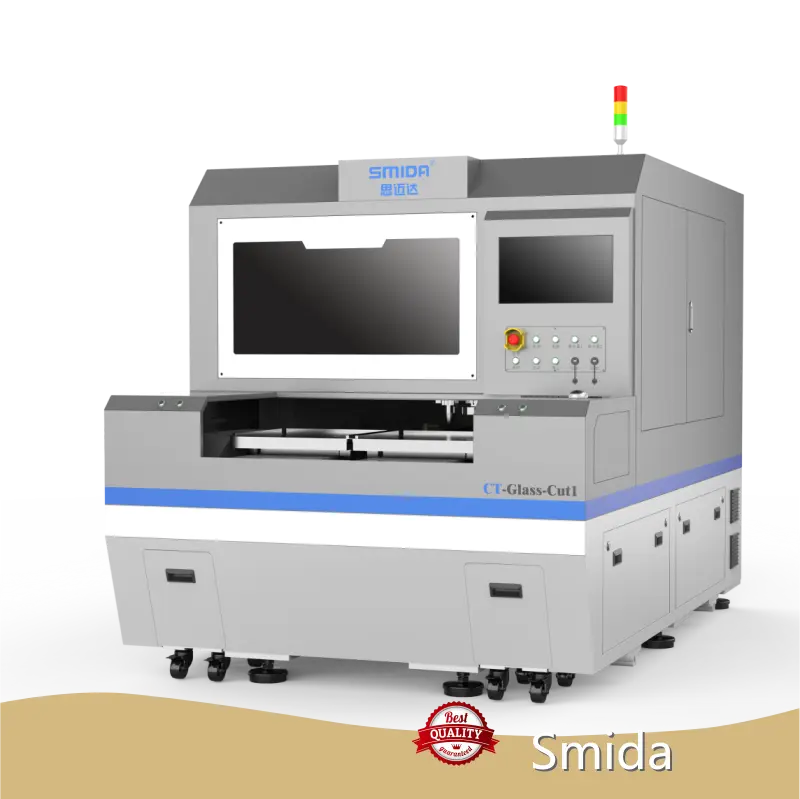

About CT-Glass-Cut1
CT-Glass-Cut1 is a machine specifically designed for laser cutting and slicing of materials such as glass and ceramics.
Equipped with high-performance infrared picosecond laser and VO2 laser, cutting and splitting are carried out simultaneously to improve production efficiency.
In short, our glass laser cutting machine has become the preferred equipment in the modern glass processing industry due to its excellent performance, efficient production capacity, and wide range of applications. We are committed to providing our customers with the highest quality products and services, helping enterprises achieve industrial upgrading and transformation.
Performance Index
Laser Cutting and Splitting Machine
CT-Glass-Cut1
| Performance Index | Parameter |
| Product name | Laser cutting and splitting machine |
| Working mode | Manual loading and unloading |
| Cutting system | SMIDA |
| File format | Dxf format |
| Purpose | Glass and ceramic cutting |
| Industrial vacuum cleaning system | Standard configuration |
| Work environment | Temperature 25 ℃+2 ℃; Humidity ≤ 60% |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Working height | 870+30mm |
| Rated voltage of main equipment power supply | 380V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Equipment dimensions (L*W*H) | 1730x2700x1860(mm) |
| Weight | 4200kg |
| Total power | 13kW/h (including vacuum cleaner) |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Equipment Selection Function
In order to meet the cutting needs of different customers, Smida offers some optional functions.
Technical Parameter
| Performance Index | Parameter |
| Platform structure | Marble+linear motor |
| Positioning accuracy | ±3μm |
| Repetitive positioning accuracy | ±1.5μm |
| X/Y resolution | 0.1um |
| Cutting head | Bessel cutting head |
| CCD resolution | 5 million pesos |
| X1/X2 axis travel | 950mm |
| Y1/Y2 axis travel | 1930mm |
| Z-axis travel | 50mm |
| X1, X2, Y1, Y2 single axis maximum speed | 800mm/s |
| XY maximum acceleratio | 1.0G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Cutting of thick glass, large format irregular cutting, optical glass, optical edge, smart device glass cover, camera protective lens, eye lens, etc
Company Advantages
· Smida laser cutting machine is with carefully finished details and quality design that suits international tastes.
· Our professional technicians monitor the quality of products throughout the production process, which greatly ensures the quality of products.
· This Smida branded product has won high attention and praise from its customers.
Company Features
· Shenzhen Smida Intelligent Equipment Co., Ltd. is a market leader in laser cutting machine market at home and abroad.
· By mastering advanced technology, laser cutting machine is produced with high performance.
· Our mission is to provide the best results for our customers. We continuously improve our processes in terms of products and services.
Application of the Product
Our laser cutting machine can be used in a variety of industries to play a certain role.
Smida insists on providing customers with reasonable solutions according to their actual needs.
