Product details of the best laser marking machine
Quick Overview
Smidabest laser marking machine adopts the sophisticated equipment and reflects the finest workmanship. Many customers have given us the positive feedback of the product regarding its durability, overall performance, economic benefits. The best laser marking machine developed by our company can be applied in different fields. The fame of best laser marking machine benefits from its strict quality assurance.
Product Introduction
Smida not only pays attention to the whole, but also focuses on the details of best laser marking machine. In this way, we make sure that our products are better reflected in the following details.
SMIDA is not only a seller
of laser marking equipment,
but moreimportantly,
it provides customers with comprehensive solutions for laser marking.
REMINDER:
Laser marking can mark many products with a wide range of materials. If you have any questions or want to find the equipment youneed more quickly, you can communicate directly with our online customer service at any time.

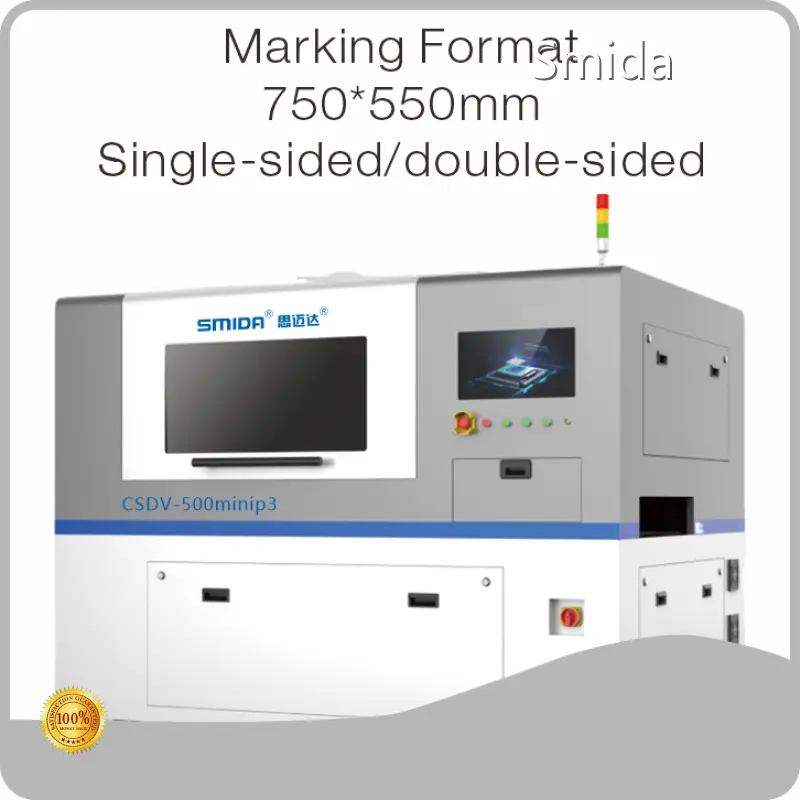

Automatic Online
Laser Marking Machine
Our Case - What We Can Do
Equipped with high-quality ultraviolet and fiber lasers,
it can accurately and efficiently complete any graphic or text marking such as one-dimensional codes and two-dimensional codes.
Product configuration
| Model | CSDV-500minip3 |
| Laser | 5W (UV laser, fiber laser, CO2 laser, green laser optional) |
| Marking scope | 750*550mm， Single/double-sided (optional) |
| Marking range | 150*150/110*110mm |
| Marking efficiency | 1-2 seconds/code (5mm * 5mm QR code) |
| Power | AC 220V, 50Hz/60Hz, 6.3kW(including chiller and dust collector) |
| Size | L1835*W1800*H1800mm |
| Weight | 850kg |
Product Advantages
By choosing SMIDA, we will have a professional team to provide you with laser marking solutions from design, manufacturing, sales, and after-sales.
Main technical parameters of the machine
| Equipment Name | Online Automatic Laser Marking Machine | Equipment Model | CSDV - 500minip3 |
| Marking Power | 5W (UV Laser, Fiber Laser, CO₂ Laser, Green Laser Optional) | ||
| Marking Range | 750*550mm(Single/double-sided options available) | Marking Area | 150*150/110*110mm |
| Working Efficiency | 1 - 2 seconds/code (Taking 5mm5mm QR code as an example) | Marking Line Speed | 4500mm/s |
| Minimum Marking QR Code | 3mm*3mm | Minimum Marking Character | 0.8mm |
| Maximum Marking Precision | ±0.05mm | Repeat Positioning Precision | ±0.02mm |
| Minimum Line Width | 0.02mm | Power Supply | AC220V，50/60Hz |
| Overall Dimensions | L1835*W1800*H1800mm | Total Power of the Machine | 6.3kW (Including Chiller and Dust Extractor) |
| Size of dust collector | L460*W485*H880mm | Weight of the Main Unit | 850kg |
Product description
Excellent performance, permanently marked, easy to operate.
- Equipped with high-quality ultraviolet and fiber lasers, it can accurately and efficiently complete any graphic or text marking such as one-dimensional codes and two-dimensional codes.
- According to customer requirements, automatic skip codes for serial numbers, date and time, and specified databases can be implemented.
- Equipped with CCD visual positioning for high-precision marking, optional one-dimensional code and two-dimensional code automatic detection function for real-time product inspection.
- The minimum marking QR code can reach 3mm * 3mm, perfectly meeting the marking needs of small particles or products with insufficient space.
- A 5mm sized QR code mark only takes 1-2 seconds per piece.
- Laser coding is safer, more environmentally friendly, and cleaner than ink coding.
Applicable materials
Mini backlight board, PCB (PCBA), SMT light strip FPC、 Materials such as glass substrate, aluminum substrate, fingerprint module, communication products, etc.
Why choose laser marking machine？
| Dimension | Laser marking machine | Traditional marking (such as ink/stamping/corrosion) |
| Processing method | Non contact, laser beam action | Contact type (ink spraying, mechanical engraving/stamping) |
| Accuracy | Micron level (line width 0.02mm, accuracy ± 0.02mm) | Millimeter level (line width ≥ 0.1mm, accuracy ≤ 0.1mm) |
| Speed | 4500mm/s (1-2 seconds per code) | ≤ 100mm/s (single code ≥ 5 seconds, including consumables replacement) |
| Consumables | None (only consumes power) | Ink, molds, corrosive liquids, etc. (high cost) |
| Environmental Protection | No pollution (no waste liquid or exhaust gas) | Ink evaporation and corrosive liquid pollution (requiring environmental protection treatment) |
| Durability | Permanent clarity (wear-resistant, corrosion-resistant) | Easy to peel off, fade (ink)/deform (stamping) |
| Flexibility | Multi material, multi shape, quick changeover (software image modification) | Single material/shape, mold replacement required (long cycle) |
| Automation | Full process automation (integrated production line, visual system) | Semi automated (requiring manual intervention, such as changing ink cartridges and adjusting molds) |
