Product details of the automated laser marking systems
Product Information
The production process of Smida automated laser marking systems is strictly controlled utilizing high precision machine. This product quality is guaranteed, and has a number of international certification, such as ISO certification. The size, shape and material of automated laser marking systems can be made by client's requirements.

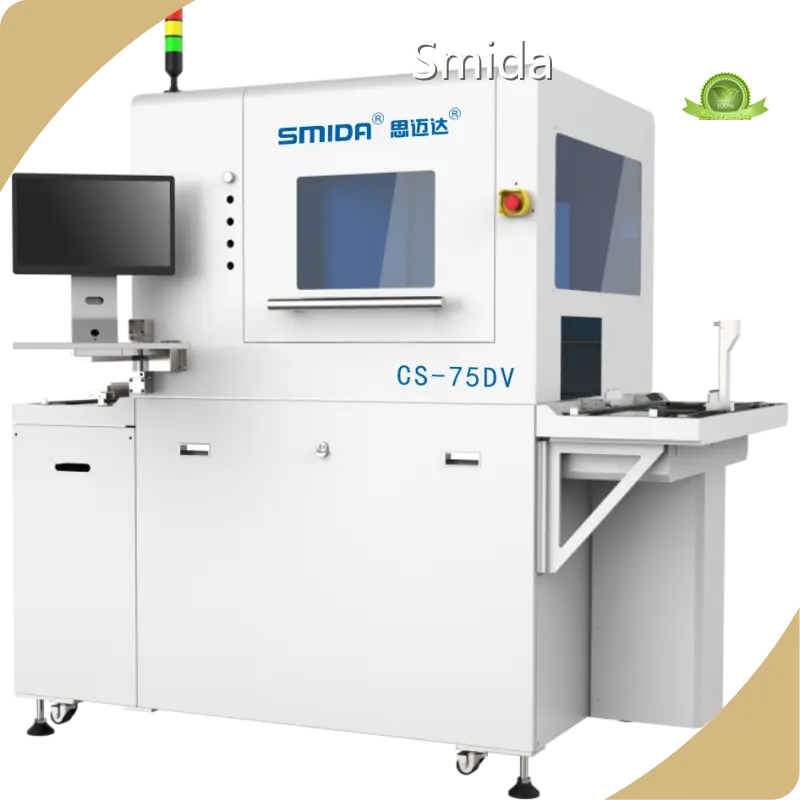

Full Automatic Laser Marking Machine
CS-75DV
SMIDA is not only a seller of laser marking equipment, but more importantly, it provides customers with comprehensive solutions for laser marking.
Reminder:
Laser marking can mark many products with a wide range of materials. If you have any questions or want to find the equipment you need more quickly, you can click to contact us at any time for direct communication.
Difference from CS-60DV
Larger marking range and larger equipment size
Laser Marking Machine Description
Laser Marking Machine Advantage
Laser Marking Machine Application
Various support materials such as PPA, EMC, PCT, filament, ceramic substrate, and aluminum substrate.
Laser Marking Effect
Laser marking machine -CS-60DV
● Equipped with a powerful vacuum suction system, it only comes into contact with silicon suction cups and will not damage the material sheets.
● Equipped with high-precision color photoelectric sensors, it can accurately distinguish between the material sheet and the isolation paper, avoiding the material sheet from being sucked away.
● Equipped with a dual hopper feeding system, the machine does not stop when replacing the material pieces.
● Equipped with a multi material box receiving system, replacing the material box does not require stopping the machine, improving work efficiency.
According to different customer requirements, multiple machine configurations are available for selection:
● You can choose between single or double laser marking machines;
● You can choose whether to equip a CCD visual alignment system.
● Other.
| Model | CS-75DV | Product Name | Fully Automatic Laser Marking Machine |
| Laser Type | UV Laser(Fiber optic and CO2 laser optional) | Laser Power | 3-10W |
| Wavelength | 355nm | Laser Brand | Guangbo (optional) |
| Marking Range | L60-260, W40-80mm | Laser Cooling Method | Air cooling/Water cooling |
| Marking Efficiency | 300-2000 pcs/h (depends on marking materials) | Positioning Accuracy | ±0.03mm |
| Repeatability Accuracy | ±0.03mm | Standard Marking Line Width | ±0.02mm (depends on marking materials) |
| Minimum Character Height | 0.08mm | Galvo Marking Speed | ≤7000mm/s |
| CCD Resolution | 5 million | Feeding Tray Capacity | 4-8 pcs |
| Marking Software | Jinchenzi/Dazhu | Power Supply | AC220V, 50Hz/60Hz, 2.5kW |
| Weight | 700kg | Overall Dimensions | L1720*W1140*H1780mm |
