Top Non Vacuum Planetary Mixer Company-1

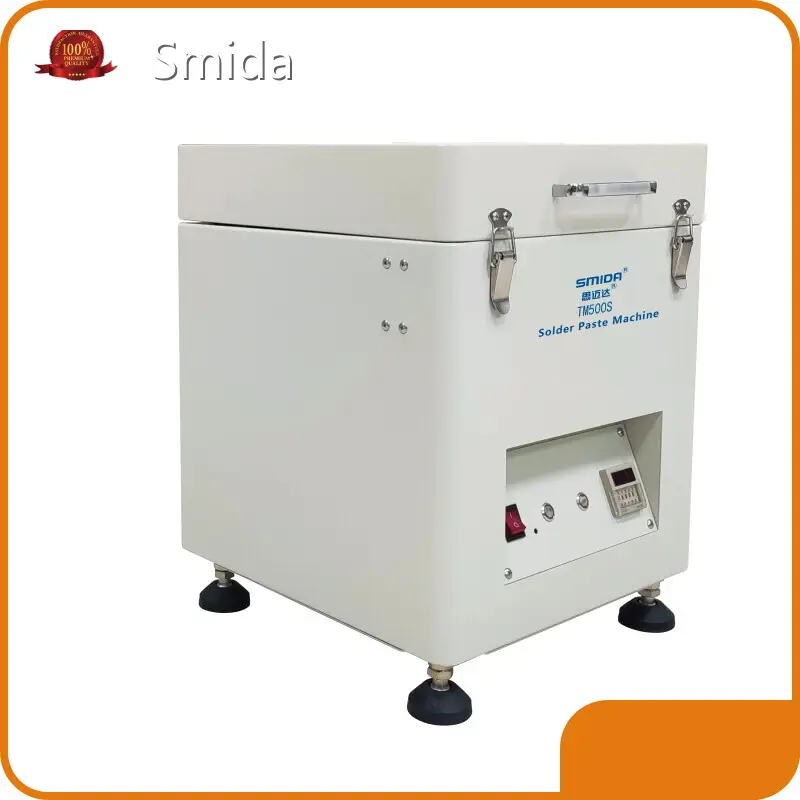

Solder Paste Mixer
_ ________________________________
● Dedicated to the solder paste.
● Single maximum mixing of 500g.
● Time can be adjusted.
● High speed, mix the solder paste in a short time.
● After mixing, the color of the solder paste is uniform, more lubricating, and the viscosity also decreases.
Technical Parameter
| Product Name | Solder paste mixer |
| Model | TM-500S |
| Working mode | Rotation/revolution/non-contact |
| Mixing capacity | 0-250g*2 (Suitable for universal 500g solder paste/bottle, other specifications can be customized by contacting our company) |
| Operating speed | Motor speed: 1350rpm, One revolution: 300rpm; Secondary rotation: 300rpm |
| Time setting | 0.01s-99h099s, Minute second setting (Usually it only takes 3-5 minutes) |
| Display method | LED digital display |
| Power Supply | AV220V, 50Hz |
| Power | 60W |
| Equipment size | L400*W400*H500mm |
| Equipment weight | 45kg |
Our advantage
Choose us, and we promise to do everything needed to ensure a successful and satisfactory working partnership. The 4 reasons set out below will give you an insight into our advantages.
Product Description
____________________
A specialized equipment for mixing solder paste, utilizing the interaction between
rotation and revolution, to remove bubbles from the solder paste while mixing it.
Shenzhen Smidalntelligent Equipment Co.Ltd.
Automation Equipment One Stop Solution Provider
Smida is a company with more than 10 years of production and R&D experience in the professional intelligent equipment. It is a national high-tech enterprise
that integrates automation solution consulting, R&D, manufacturing, and after-sales service. We win a number of
foreign trade export certification and patents, and has cooperated with many enterprises.
Operation Steps
Paint Mixer
Step 1: Release the latch and open the machine cover.
Step 2: Take out the solder paste can and cover it with sleeves. (The diameter of the solder paste tank is greater than φ 64 does not require lining)
Step 3: Load solder paste can and balance code into the solder paste tank.(Mixing 2 bottles of solder paste at the same time can cancel the balance method code)
Step 4: Close the machine cover and lock the latch.
Step 5: Set the timer, with a reference value of 15 minutes, set to 15M00 (Note that the time relay H corresponds to hours, M minutes, and S seconds)
Step 6: Connect the power, turn on the power switch, start the start button, and the device will start mixing.
Step 7: After the mixing time is up, wait for the mixing head to stop rotating, press the stop button to stop the equipment, turn off the power switch. Remove the solder paste can.
Application
Solder paste
FAQ
If you have any further questions about the paint mixer, please contact Smida.
Company Advantages
· The production technique of Smida non vacuum planetary mixer is advanced and guaranteed.
· Experienced quality inspectors ensure that the product meets the highest quality standards.
· Advanced equipment in Smida ensure the bulk production of non vacuum planetary mixer to raise the efficiency.
Company Features
· Smida now has become a popular non vacuum planetary mixer exporter at home and abroad.
· Shenzhen Smida Intelligent Equipment Co., Ltd. has professional technical personnel to undertake non vacuum planetary mixer solutions.
· We warmly welcome your needs or designs and we will offer the correct non vacuum planetary mixer based on your requirements.
Application of the Product
The non vacuum planetary mixer produced by Smida is very popular in the market and is widely used in industry.
In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
