Professional Planetary Centrifugal Mixer Company-1
Product details of the planetary centrifugal mixer
Product Overview
Our planetary centrifugal mixer touches softly and smoothly. The product complies with international quality standards and has a long service life. The product has a bright market prospect and widespread application domain.
Product Introduction
planetary centrifugal mixer's details are presented below. They help better know the product.

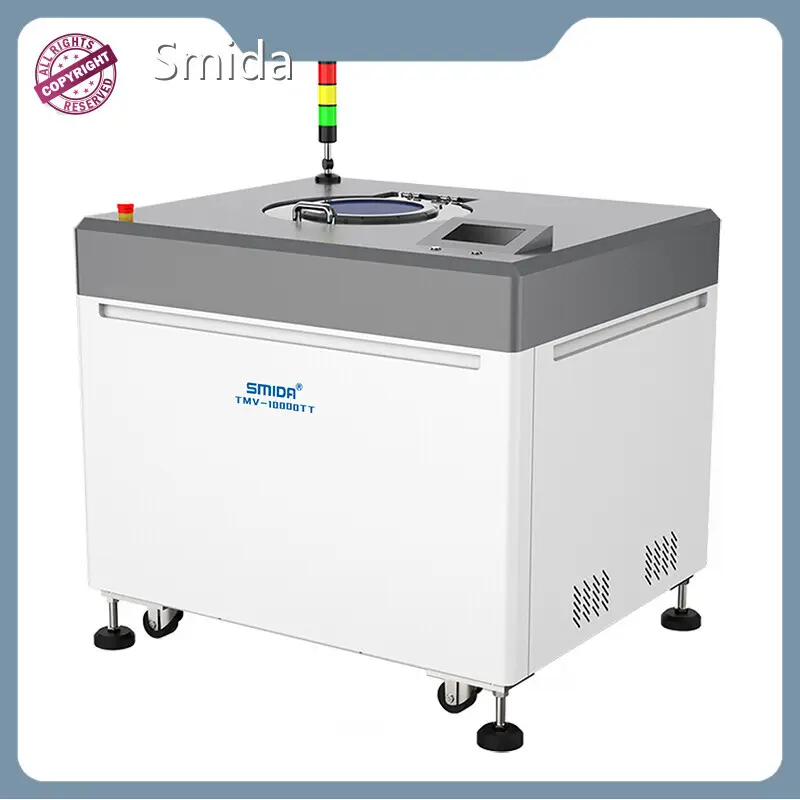

Planetary Centrifugal Mixer
● Mixing of material using 2 centrifugal forces in a short time.
● Mixing capacity varies from a few grams up to 9kg.
● Up to 20 preset programs for different types of the materials.
● Max. rotation speed is 1500rpm for high viscosity material.
● The key parts are all imported and the big brand in the industry.
● Some functions can be modified accrding to customer's request.
Product Advantages
Product Description
Shenzhen Smidalntelligent Equipment Co.Ltd.
Automation Equipment One stop solution provider
Smida is a company with more than 10 years of production and R&D experience in the professional intelligent equipment. It is a national high-tech enterprise that integrates automation solution consulting, R&D, manufacturing, and after-sales service. We win a number of foreign trade export certification and patents, and has cooperated with many enterprises.
Technical Parameter
|
Product Name |
Planetary centrifugal mixer |
|
Model |
TMV-10000TT |
|
Working mode |
Rotation, revolution, non-contact, vacuum |
|
Max. mixing capacity |
9L/9kg (2 cups) |
|
Operating speed |
Revolution: 100-1500rpm, rotation: adjustable ratio of 0-1.5 revolution to rotational speed |
|
Max. running time |
30mins |
|
Display method |
LCD |
|
Power Supply |
AC380V, 50Hz/60Hz |
|
Power |
10.5kW |
|
Equipment size |
1200*1000*1050mm |
|
Equipment weight |
600kg |
Application
Broad Applicability:
This planetary centrifugal mixer is particularly useful for mixing high-viscosity materials that are typically challenging or time-consuming to process with conventional machines. Its exceptional mixing capacity makes it an ideal solution for a wide range of applications, especially those that are thick or dense, and require thorough mixing and deaeration, including:
lAdhesives, sealants, pastes, potting compounds;
lCoatings and paints;
lGreases and lubricants;
lPharmaceutical, cosmetic, and personal care products (e.g., creams, gels, and ointments);
lElectronics materials (e.g., encapsulants, underfills, and thermal interface materials)
Why Choose a Smida Planetary Centrifugal Mixer
Ideal for High-Viscosity Adhesives
The planetary centrifugal mixer is well-suited for processing high-viscosity adhesives, even those with added fillers that increase viscosity. It can mix and deaerate materials that were previously difficult or even impossible to process with conventional mixers.
Simultaneous Mixing and Deaeration
The centrifugal mixer combines mixing, dispersion, and deaeration in a single step, eliminating the need for separate processes. This increases processing efficiency significantly compared to traditional methods.
Rapid, Uniform Mixing
The complex flow patterns and strong shearing forces generated by the high-speed planetary motion allow for rapid and uniform mixing of high-viscosity materials. This mechanism breaks down droplets and particles into smaller sizes to enhance their dispersibility.
Effective Defoaming
The two containers rotate around a 45-degree tilted axis to create 3D flow. Additionally, with two strong centrifugal forces and reduced air pressure, even air bubbles in high-viscosity adhesives will be effectively removed.
Blade-Less Design
By using centrifugal forces instead of agitator blades, this mixer avoids common issues associated with blade-based mixers, such as material buildup, uneven mixing, and potential contamination from worn blades.
FAQ
Company Advantages
With the location in shen zhen, Shenzhen Smida Intelligent Equipment Co., Ltd. is a high-tech enterprise integrating production, processing, sales and service. We are mainly engaged in planetary centrifugal mixer,laser marking machine,laser cutting machine management. Our company always insists on the business philosophy of 'credit first, integrity cooperation, mutual benefit and win-win', and we carry forward the enterprise spirit of 'pursuing excellence, willing to dedicate and advancing with the times'. Based on that, we provide quality products and services for consumers with professional team and efficient management. Our company has a group of teams experienced for research and development and production management. They can independently complete all aspects from production, quality control to export. And our products can meet the requirements of customers and the market for product quality. Since the establishment, Smida has always been focusing on the R&D and production of planetary centrifugal mixer,laser marking machine,laser cutting machine. With strong production strength, we can provide customers with personalized solutions according to customers' needs.
Look forward to inquiries from customers in various industries
