Planetary Centrifugal Mixer by Smida-3
Company Advantages
· The modern manufacture technology guarantees the production of Smida planetary centrifugal mixer.
· As our QC experts strictly control the quality throughout the whole production process, the quality of the product can be fully guaranteed.
· It is well-known that Smida has good quality planetary centrifugal mixer after-sales service.

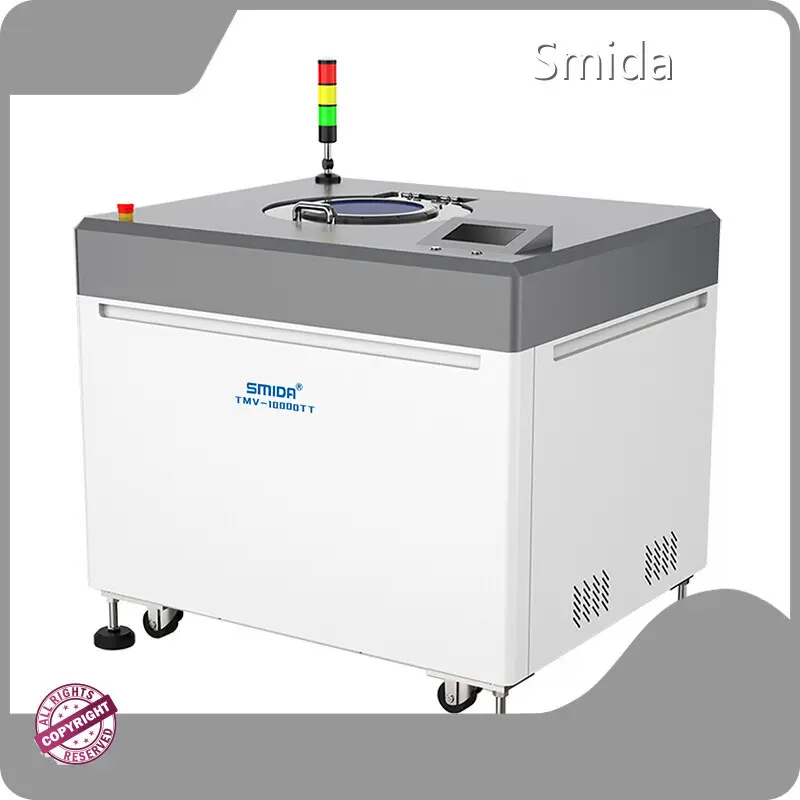

Planetary Centrifugal Mixer
● Mixing of material using 2 centrifugal forces in a short time.
● Mixing capacity varies from a few grams up to 9kg.
● Up to 20 preset programs for different types of the materials.
● Max. rotation speed is 1500rpm for high viscosity material.
● The key parts are all imported and the big brand in the industry.
● Some functions can be modified accrding to customer's request.
Product Advantages
Product Description
Shenzhen Smidalntelligent Equipment Co.Ltd.
Automation Equipment One stop solution provider
Smida is a company with more than 10 years of production and R&D experience in the professional intelligent equipment. It is a national high-tech enterprise that integrates automation solution consulting, R&D, manufacturing, and after-sales service. We win a number of foreign trade export certification and patents, and has cooperated with many enterprises.
Technical Parameter
|
Product Name |
Planetary centrifugal mixer |
|
Model |
TMV-10000TT |
|
Working mode |
Rotation, revolution, non-contact, vacuum |
|
Max. mixing capacity |
9L/9kg (2 cups) |
|
Operating speed |
Revolution: 100-1500rpm, rotation: adjustable ratio of 0-1.5 revolution to rotational speed |
|
Max. running time |
30mins |
|
Display method |
LCD |
|
Power Supply |
AC380V, 50Hz/60Hz |
|
Power |
10.5kW |
|
Equipment size |
1200*1000*1050mm |
|
Equipment weight |
600kg |
Application
Broad Applicability:
This planetary centrifugal mixer is particularly useful for mixing high-viscosity materials that are typically challenging or time-consuming to process with conventional machines. Its exceptional mixing capacity makes it an ideal solution for a wide range of applications, especially those that are thick or dense, and require thorough mixing and deaeration, including:
lAdhesives, sealants, pastes, potting compounds;
lCoatings and paints;
lGreases and lubricants;
lPharmaceutical, cosmetic, and personal care products (e.g., creams, gels, and ointments);
lElectronics materials (e.g., encapsulants, underfills, and thermal interface materials)
Why Choose a Smida Planetary Centrifugal Mixer
Ideal for High-Viscosity Adhesives
The planetary centrifugal mixer is well-suited for processing high-viscosity adhesives, even those with added fillers that increase viscosity. It can mix and deaerate materials that were previously difficult or even impossible to process with conventional mixers.
Simultaneous Mixing and Deaeration
The centrifugal mixer combines mixing, dispersion, and deaeration in a single step, eliminating the need for separate processes. This increases processing efficiency significantly compared to traditional methods.
Rapid, Uniform Mixing
The complex flow patterns and strong shearing forces generated by the high-speed planetary motion allow for rapid and uniform mixing of high-viscosity materials. This mechanism breaks down droplets and particles into smaller sizes to enhance their dispersibility.
Effective Defoaming
The two containers rotate around a 45-degree tilted axis to create 3D flow. Additionally, with two strong centrifugal forces and reduced air pressure, even air bubbles in high-viscosity adhesives will be effectively removed.
Blade-Less Design
By using centrifugal forces instead of agitator blades, this mixer avoids common issues associated with blade-based mixers, such as material buildup, uneven mixing, and potential contamination from worn blades.
FAQ
Company Features
· Shenzhen Smida Intelligent Equipment Co., Ltd. has developed to be the initiator of planetary centrifugal mixer industry.
· Strong technical force makes Shenzhen Smida Intelligent Equipment Co., Ltd. continue to walk in the forefront of planetary centrifugal mixer industry.
· The company culture that Smida sticks to is to make qualified planetary centrifugal mixer, and provide qualified services.
Product Details
With the pursuit of perfection, Smida exerts ourselves for well-organized production and high-quality planetary centrifugal mixer.
Application of the Product
The planetary centrifugal mixer produced by Smida has a wide range of applications.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
