Product details of the centrifugal mixer

Product Overview

Our machinery is provided with advantages of compact structure, novel design, stable performance and convenient operation and so on. centrifugal mixer has a beautiful appearance and perfect functions. The popularity of the product comes from its reliable performance and good durability. The significant advantages of the product make it more applicable.

Product Information

Compared with peer products, Smida's centrifugal mixer has the outstanding advantages, mainly reflected in the following aspects.

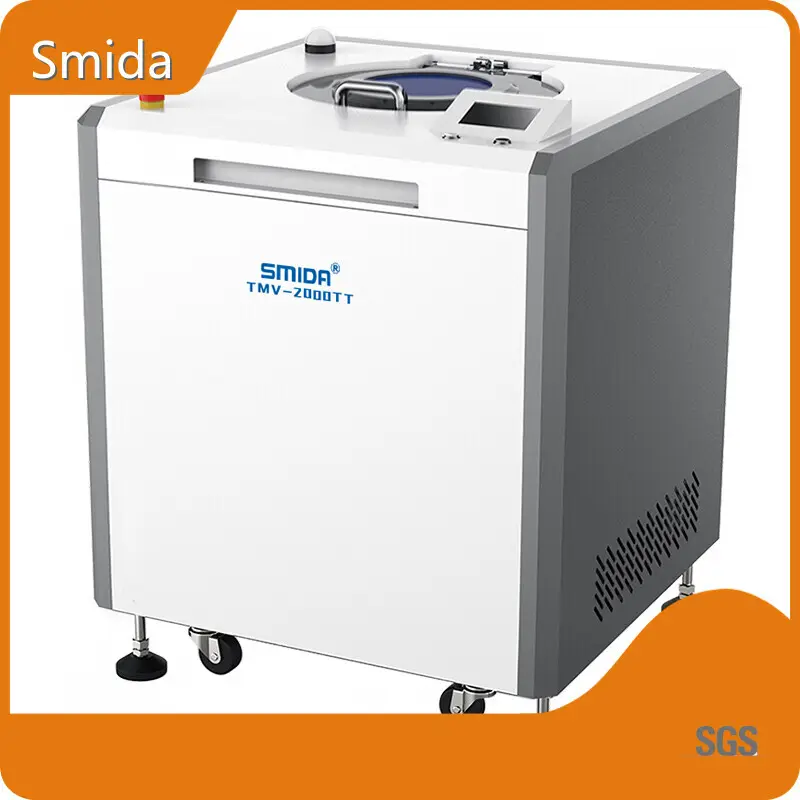

TMV-2000TT Epoxy Mixing Machine

· Revolution speed - up to 2500rpm

· Mixing capacity - up to 2000ml

· Material weight - up to 2000g per time

· Motor power - up to 2.8kW

· Equipment size - L730*W730*H910mm

· Equipment weight - 215kg

Resin Mixing Machine Advantages

产品优势-3 (23)

产品优势-2 (23)

产品优势-1 (20)

The epoxy mixing machine single mixing can mix 2000ml of large-capacity materials, which can be adjusted to different capacities through different transfer fixtures for mixing. Whether for experimental or mass production use, it can be easily met, with a mixing speed of up to 2500rpm, which can be completed in a short time. The rotation speed can be adjusted according to the characteristics of the materials to adapt to different materials. It can not only perfectly mix materials but also not damage them.

Planetary Centrifugal Mixer Description

Capable of evenly mixing multiple materials in a short period of time.

Simultaneously mixing and defoaming with super strength and high speed.

Adjustable speed ratio of revolution rotation.

Can handle materials up to 2kg.

The TMV-2000TT planetary centrifugal mixer can have many names, including epoxy mixing machine, resin mixing machine, and adhesive mixing machine. Due to its unique planetary design, this vacuum planetary mixer uses revolution and rotation for material mixing, which can mix most materials and achieve good mixing effects. The epoxy resin mixer machine is suitable for industries such as chemical, light industry, battery, and pharmaceutical.

Technical Parameter

Product Name	Planetary centrifugal mixer
Model	TMV-2000TT
Working mode	Rotation, revolution, non-contact, vacuum
Max. mixing capacity	2L/2kg (2 cups)
Operating speed	Revolution: 100-2500rpm, rotation: adjustable ratio of 0-2 revolution to rotational speed
Max. running time	30mins
Display method	LCD
Power Supply	AC220V, 50Hz/60Hz
Power	2.8kW
Equipment size	730*730*910mm
Equipment weight	215kg

Application

Epoxy Resin Mixer Planetary Centrifugal Deaeration

环氧树脂

2000t-1

Planetary mixers are widely used in fields such as chemical, resin, epoxy resin, pharmaceuticals, printing inks, paint coatings, etc. Because planetary centrifugal mixers can evenly disperse raw materials with different densities and ratios in the mixing medium, forming a more uniform mixture, this characteristic is applicable to most materials.
