Laser Marking Machine Price List
High-precision Full Automatic Laser Marking Machine
CS-60DV-H
SMIDA is not only a seller of laser marking equipment, but more importantly, it provides customers with comprehensive solutions for laser marking.
Reminder:
Laser marking can mark many products with a wide range of materials. If you have any questions or want to find the equipment you need more quickly, you can click to contact us at any time for direct communication.
Laser Marking Machine Description
Advantages of High-precision Fully Automatic Marking Machine
| Model | High-precision | Regular style |
| Marking format | L60-180mm, W40-80mm | L60-160mm, W40-60mm |
| Positioning accuracy | ±0.01mm | ±0.03mm |
| Repeatability | ±0.01mm | ±0.03mm |
| Min. marking QR code | 0.3*0.3mm | 2*2mm |
| CCD resolution | 12 million | 5 million |
Laser Marking Machine Application
Various support materials such as PPA, EMC, PCT, filament, ceramic substrate, and aluminum substrate.
Laser Marking Effect

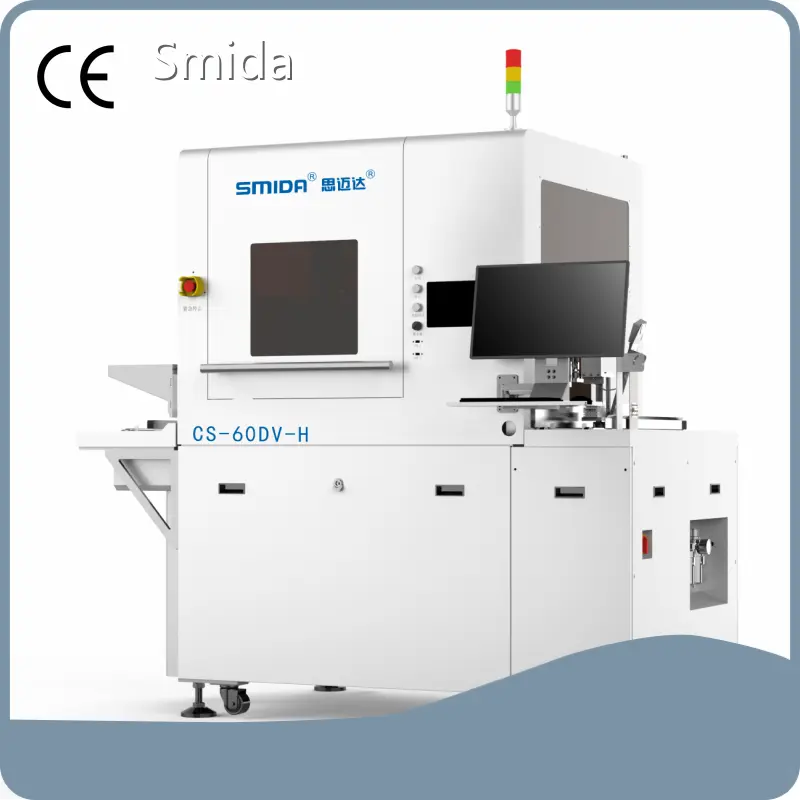

High precision fully automatic laser marking machine -CS-60DV-H
● Equipped with linear motor, high precision, high speed, and high response.
● Equipped with high-quality lasers, it can accurately and efficiently complete any marking task with clear and beautiful characters.
● According to customer requirements, skip codes for serial number encoding or other setting methods can be implemented.
● The minimum marking character can reach 0.08mm, the marking accuracy can reach ± 0.01mm, and the minimum QR code is 0.3 * 0.3mm, meeting the marking requirements of small particle products.
● Ultra high efficiency in sheet loading and filling, equipped with a single laser marking machine, capable of loading 300-2000 sheets per hour.
● Equipped with a powerful vacuum suction system, the material is only in contact with the silicon soft suction cup to ensure that the material is not damaged in any way.
● Multiple paper removal methods, compatible with over 99% of materials on the market for feeding.
● Equipped with a multi box material receiving system, the replacement cycle of material boxes is greatly extended, the frequency of manual replacement of material boxes is reduced, and the replacement of material boxes does not require downtime, improving work efficiency.
● Real time interaction between the equipment system and MES instructions for MES instruction verification and marking information verification.
According to different customer requirements, multiple machine configurations are available for selection:
● Ultraviolet, fiber optic, and carbon dioxide lasers.
● The equipment can choose material box to material box/sheet to material box.
● The equipment can be equipped with OCR visual precision detection to solve customer problems such as wrong typing, unclear typing, and misalignment.
Other.
| Model | CS-60DV-H | Product Name | High-precision Fully Automatic Laser Marking Machine |
| Laser Type | UV Laser(Fiber optic and CO2 laser optional) | Laser Power | 3-10W |
| Wavelength | 355nm | Laser Brand | Guangbo (optional) |
| Marking Range | L60-180, W40-80mm | Laser Cooling Method | Water cooling |
| Marking Efficiency | 300-2000 pcs/h (depends on marking materials) | Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.01mm | Standard Marking Line Width | ±0.02mm (depends on marking materials) |
| Minimum Character Height | 0.08mm | Galvo Marking Speed | ≤7000mm/s |
| CCD Resolution | 12 million | Feeding Tray Capacity | 4-8 pcs |
| Max. speed of X/Y single axis | 800mm/s | Max. acceleration of X/Y | 1.0G |
| Gas source (dry filtered air) | 0.5 - 0.6Mpa | Industrial dust collection system | Standard configuration |
| Marking method | Galvo + Field lens | Code scanning | Handheld scanner/fixed scanner |
| Marking Software | SMIDA | File format | dxf format |
| Working environment | Temperature: 27°C ± 2°C; Humidity: ≤ 60% | Power Supply | AC220V, 50Hz/60Hz, 6kW |
| Weight | 700kg | Overall Dimensions | L2180*W1240*H1920mm |
