Laser Marking Machine Manufacturer Price List-5
Company Advantages
· Smida laser marking machine manufacturer is constructed adopting top-grade raw materials in line with the industrial principles.
· The product, meeting with the strict quality standards, has a long service life.
· Shenzhen Smida Intelligent Equipment Co., Ltd. is dedicated to serving customers with its experienced management team.
SMIDA is not only a seller
of laser marking equipment,
but moreimportantly,
it provides customers with comprehensive solutions for laser marking.
REMINDER:
Laser marking can mark many products with a wide range of materials. If you have any questions or want to find the equipment youneed more quickly, you can communicate directly with our online customer service at any time.

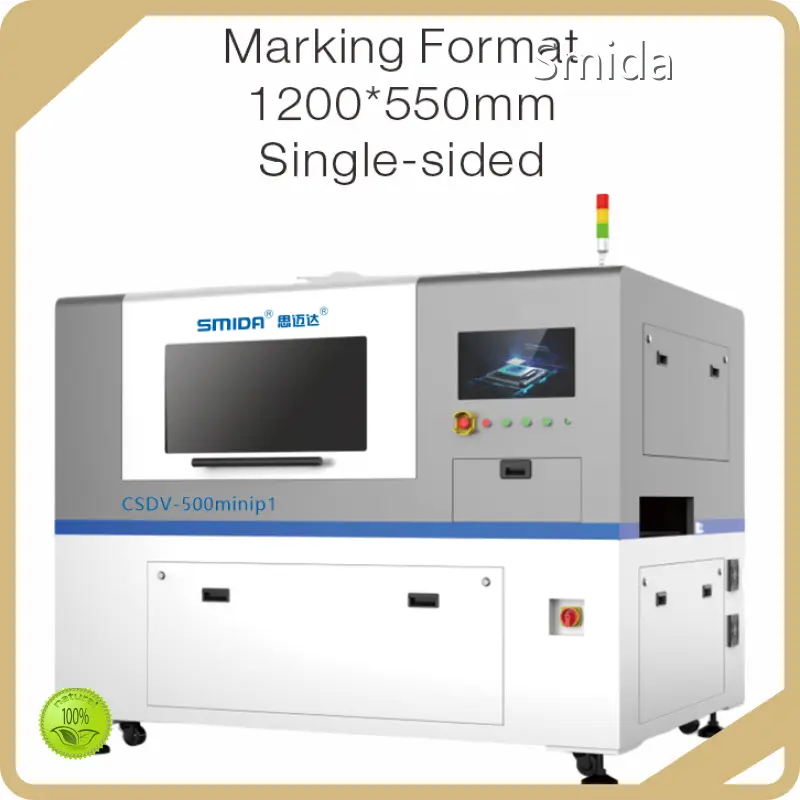

Automatic Online
Laser Marking Machine
Our Case - What We Can Do
Equipped with high-quality ultraviolet and fiber lasers,
it can accurately and efficiently complete any graphic or text marking such as one-dimensional codes and two-dimensional codes.
Product configuration
| Model | CSDV-500minip1 |
| Laser | 5W (UV laser, fiber laser, CO2 laser, green laser optional) |
| Marking scope | 1200*550mm |
| Marking range | 150*150/110*110mm |
| Marking efficiency | 1-2 seconds/code (5mm * 5mm QR code) |
| Power | AC 220V, 50Hz/60Hz, 6.3kW(including chiller and dust collector) |
| Size | L1810*W1653*H1900mm |
| Weight | 800kg |
Product Advantages
By choosing SMIDA, we will have a professional team to provide you with laser marking solutions from design, manufacturing, sales, and after-sales.
Main technical parameters of the machine
| Equipment Name | Online Automatic Laser Marking Machine | Equipment Model | CSDV - 500minip1 |
| Marking Power | 5W (UV Laser, Fiber Laser, CO₂ Laser, Green Laser Optional) | ||
| Marking Range | 1200*550mm | Marking Area | 150*150/110*110mm |
| Working Efficiency | 1 - 2 seconds/code (Taking 5mm5mm QR code as an example) | Marking Line Speed | 4500mm/s |
| Minimum Marking QR Code | 3mm*3mm | Minimum Marking Character | 0.8mm |
| Maximum Marking Precision | ±0.05mm | Repeat Positioning Precision | ±0.02mm |
| Minimum Line Width | 0.02mm | ||
| Power Supply | AC220V，50/60Hz | Total Power of the Machine | 4kW (Including Chiller and Dust Extractor) |
| Weight of the Main Unit | 800kg | Overall Dimensions | L1810*W1653*H1900mm |
Product description
Excellent performance, permanently marked, easy to operate.
- Equipped with high-quality ultraviolet and fiber lasers, it can accurately and efficiently complete any graphic or text marking such as one-dimensional codes and two-dimensional codes.
- According to customer requirements, automatic skip codes for serial numbers, date and time, and specified databases can be implemented.
- Equipped with CCD visual positioning for high-precision marking, optional one-dimensional code and two-dimensional code automatic detection function for real-time product inspection.
- The minimum marking QR code can reach 3mm * 3mm, perfectly meeting the marking needs of small particles or products with insufficient space.
- A 5mm sized QR code mark only takes 1-2 seconds per piece.
- Laser coding is safer, more environmentally friendly, and cleaner than ink coding.
Applicable materials
Mini backlight board, PCB (PCBA), SMT light strip FPC、 Materials such as glass substrate, aluminum substrate, fingerprint module, communication products, etc.
Why choose laser marking machine？
| Dimension | Laser marking machine | Traditional marking (such as ink/stamping/corrosion) |
| Processing method | Non contact, laser beam action | Contact type (ink spraying, mechanical engraving/stamping) |
| Accuracy | Micron level (line width 0.02mm, accuracy ± 0.02mm) | Millimeter level (line width ≥ 0.1mm, accuracy ≤ 0.1mm) |
| Speed | 4500mm/s (1-2 seconds per code) | ≤ 100mm/s (single code ≥ 5 seconds, including consumables replacement) |
| Consumables | None (only consumes power) | Ink, molds, corrosive liquids, etc. (high cost) |
| Environmental Protection | No pollution (no waste liquid or exhaust gas) | Ink evaporation and corrosive liquid pollution (requiring environmental protection treatment) |
| Durability | Permanent clarity (wear-resistant, corrosion-resistant) | Easy to peel off, fade (ink)/deform (stamping) |
| Flexibility | Multi material, multi shape, quick changeover (software image modification) | Single material/shape, mold replacement required (long cycle) |
| Automation | Full process automation (integrated production line, visual system) | Semi automated (requiring manual intervention, such as changing ink cartridges and adjusting molds) |
Company Features
· With a good company image and market reputation, Shenzhen Smida Intelligent Equipment Co., Ltd. has become a major player in the R&D, production, and marketing of laser marking machine manufacturer.
· Our associates come from a variety of backgrounds and cultures. They are skilled in communication, creative problem solving, decision-making. With these advantages, they allow us to meet our customers' needs to the greatest extent. Our managers have significant management experience. They have good awareness and understanding of Good Manufacturing Practices and have excellent organizational, planning and time management skills. We have a professional project management team. Combining their years of experience in the laser marking machine manufacturer industry, they take the time to get to know our customers' manufacturing needs, visiting their sites and understand their specific issues.
· Our company is featured by high quality, best service, reasonable price, and timely delivery. Contact us!
Product Comparison
Compared with similar products, the laser marking machine manufacturer produced by Smida has the following advantages.
