Laser Marking Machine Manufacturer Laser Cutting Machine Wholesale - Smida
Company Advantages
· We closely follow international standards in Smida laser marking machine manufacturer's design and material.
· This product has undergone a strict quality management system to ensure high quality.
· Smida is also famous for its professional service.
About CT-Glass-Cut1

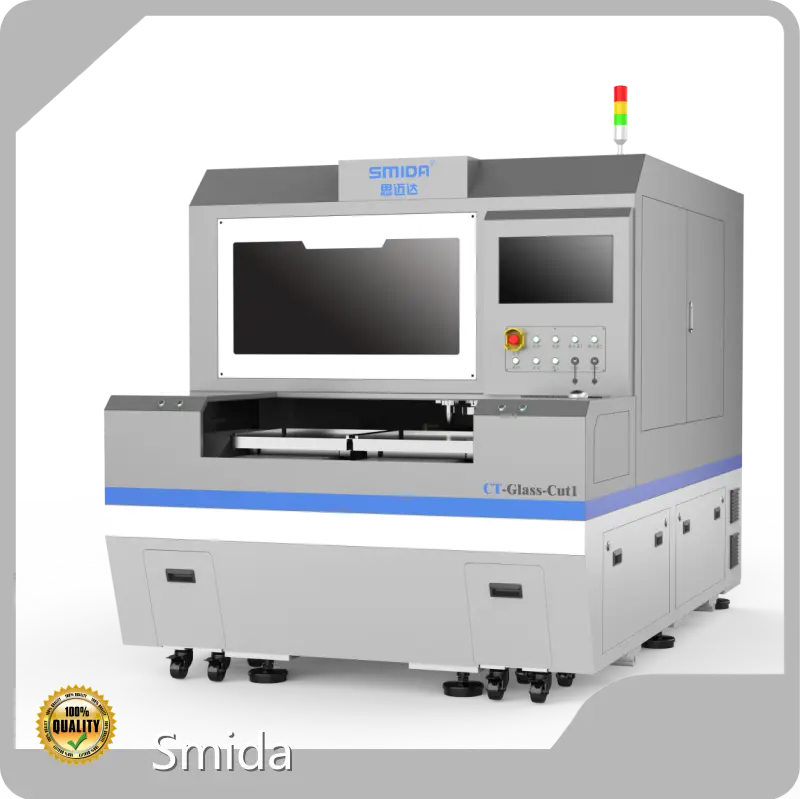

CT-Glass-Cut1 is a machine specifically designed for laser cutting and slicing of materials such as glass and ceramics.
Equipped with high-performance infrared picosecond laser and VO2 laser, cutting and splitting are carried out simultaneously to improve production efficiency.
In short, our glass laser cutting machine has become the preferred equipment in the modern glass processing industry due to its excellent performance, efficient production capacity, and wide range of applications. We are committed to providing our customers with the highest quality products and services, helping enterprises achieve industrial upgrading and transformation.
Performance Index
Laser Cutting and Splitting Machine
CT-Glass-Cut1
| Performance Index | Parameter |
| Product name | Laser cutting and splitting machine |
| Working mode | Manual loading and unloading |
| Cutting system | SMIDA |
| File format | Dxf format |
| Purpose | Glass and ceramic cutting |
| Industrial vacuum cleaning system | Standard configuration |
| Work environment | Temperature 25 ℃+2 ℃; Humidity ≤ 60% |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Working height | 870+30mm |
| Rated voltage of main equipment power supply | 380V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Equipment dimensions (L*W*H) | 1730x2700x1860(mm) |
| Weight | 4200kg |
| Total power | 13kW/h (including vacuum cleaner) |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Equipment Selection Function
In order to meet the cutting needs of different customers, Smida offers some optional functions.
Technical Parameter
| Performance Index | Parameter |
| Platform structure | Marble+linear motor |
| Positioning accuracy | ±3μm |
| Repetitive positioning accuracy | ±1.5μm |
| X/Y resolution | 0.1um |
| Cutting head | Bessel cutting head |
| CCD resolution | 5 million pesos |
| X1/X2 axis travel | 950mm |
| Y1/Y2 axis travel | 1930mm |
| Z-axis travel | 50mm |
| X1, X2, Y1, Y2 single axis maximum speed | 800mm/s |
| XY maximum acceleratio | 1.0G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Cutting of thick glass, large format irregular cutting, optical glass, optical edge, smart device glass cover, camera protective lens, eye lens, etc
Company Features
· Shenzhen Smida Intelligent Equipment Co., Ltd. has rich factory experience for high quality laser marking machine manufacturer and is highly recognized by customers.
· Innovation is one of Shenzhen Smida Intelligent Equipment Co., Ltd.'s core strengths. Shenzhen Smida Intelligent Equipment Co., Ltd.'s continual efforts have been rewarded with an ISO 9001 : 2000 certification for Quality Management Systems. Shenzhen Smida Intelligent Equipment Co., Ltd. has strong design team, technology team and development team to launch novel ideas on laser marking machine manufacturer.
· Shenzhen Smida Intelligent Equipment Co., Ltd. strives to be your best business partner in such high-speed developing & serious-competition environment. Contact us!
Product Details
Smida's laser marking machine manufacturer has excellent performances, which are reflected in the following details.
Application of the Product
Smida's laser marking machine manufacturer is available in a wide range of applications.
Since the establishment, Smida has always been focusing on the R&D and production of planetary centrifugal mixer,laser marking machine,laser cutting machine. With strong production strength, we can provide customers with personalized solutions according to customers' needs.
