Laser Marking Machine Manufacturer by Smida-8
About CT-MiniC2

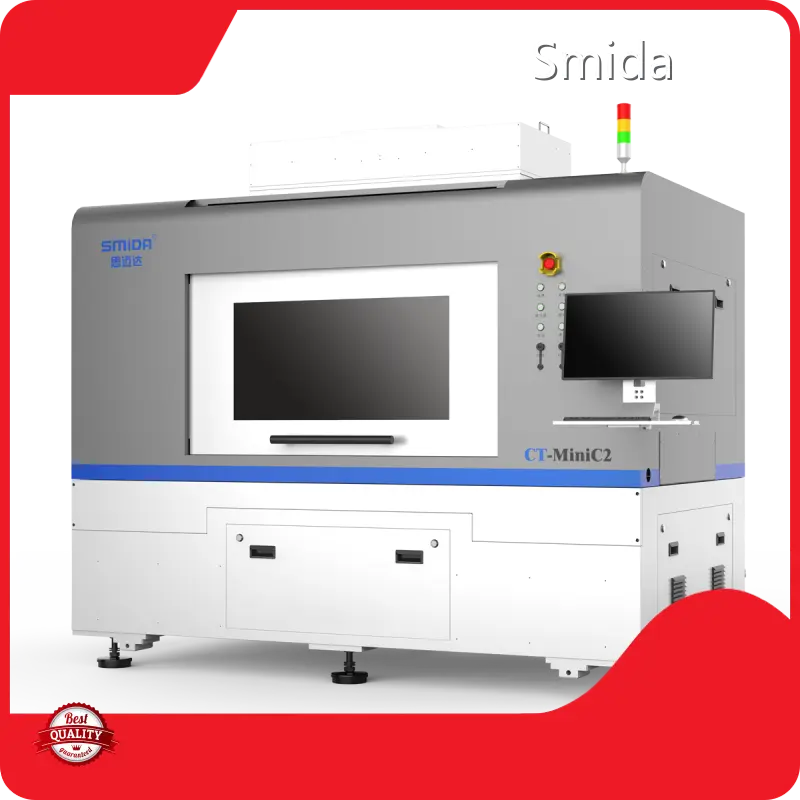

CT-MiniC2 is an offline laser sub board machine.
We use fiber lasers with good optical modes and long lifetimes, which can cut metal materials below 2mm. The laser power can be selected according to the cutting material.
The manual loading and unloading work mode is easy to operate, highly adaptable, and can be upgraded to an online work mode.
Performance index
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel | 1340mm |
| Y-axis travel | 680mm |
| Z-axis travel | 100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Technical Parameter
Offline laser sub-board machine
CT-MiniC2
| Configuration indicators | Parameter |
| Cutting heads | 2D/3D cutting head optional |
| Working mode | Manual loading and unloading of materials |
| Cutting system | SMIDA |
| File formats | dxf format |
| MES system connection | Reserved interface, optional with customized information collection |
| Industrial vacuum cleaning system | Standard configuration |
| High-pressure air source (dry filtered air) | 1.2Mpa-1.5Mpa |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Working height | 900±30mm |
| Rated voltage of main equipment power supply | 220V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Main equipment dimensions (L*W*H) | 2405x1560x2140(mm) |
| Weight | 2400kg |
| Total power | 9.3kW/h (including vacuum cleaner) |
| Work environment | Temperature 25 ℃± 2 ℃; Humidity ≤ 60% |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Metal materials such as aluminum substrate, copper substrate, aluminum alloy, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Company Advantages
· Smida laser marking machine manufacturer is manufactured using premium quality material as per the requisite norms of the industry.
· The product has a long service life and smooth performance.
· The product is available at competitive prices and is used by more and more people.
Company Features
· Shenzhen Smida Intelligent Equipment Co., Ltd. wins an honorable reputation for the customized service on laser marking machine manufacturer. We are developing rapidly in this field with our strong capability in manufacturing.
· We are fortunate to have a group of professionals. Those people are perfectly equipped with the expertise in the laser marking machine manufacturer industry to offer useful information and advice to enable our customers to know everything about the products.
· Smida holds the tenet of customer service. Inquire now!
Application of the Product
laser marking machine manufacturer has a wide range of applications.
We can provide customers with the most professional and effective solutions based on market research results and customer needs.
COMPANY STRENGTH
| Performance index | Parameter |
| Machine name | |
| Machine model | |
| Laser type | |
| Laser power | |
| Platform processing cap surface (L*W) | |
| Machinable material thickness | |
| Cutting heads | |
| Online working mode | |
| Industrial vacuum cleaning system | |
| File formats | |
| MES system connection | |
| Cutting system | |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.
What you need to know about product accuracy
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel |
1340mm |
| Y-axis travel |
680mm |
| Z-axis travel |
100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.
