Laser Cutter Supplier Price List-5
Product details of the laser cutter supplier
Product Overview
The offered Smida laser cutter supplier is produced by using the best quality raw material and advanced technology, in line with set industry norms. The product is known for its outstanding performance and long service life. The product perfectly suits the application requirements of customers and now enjoys a larger market share.
Product Description
With a focus on every detail of laser cutter supplier, we strive to create high-quality products.

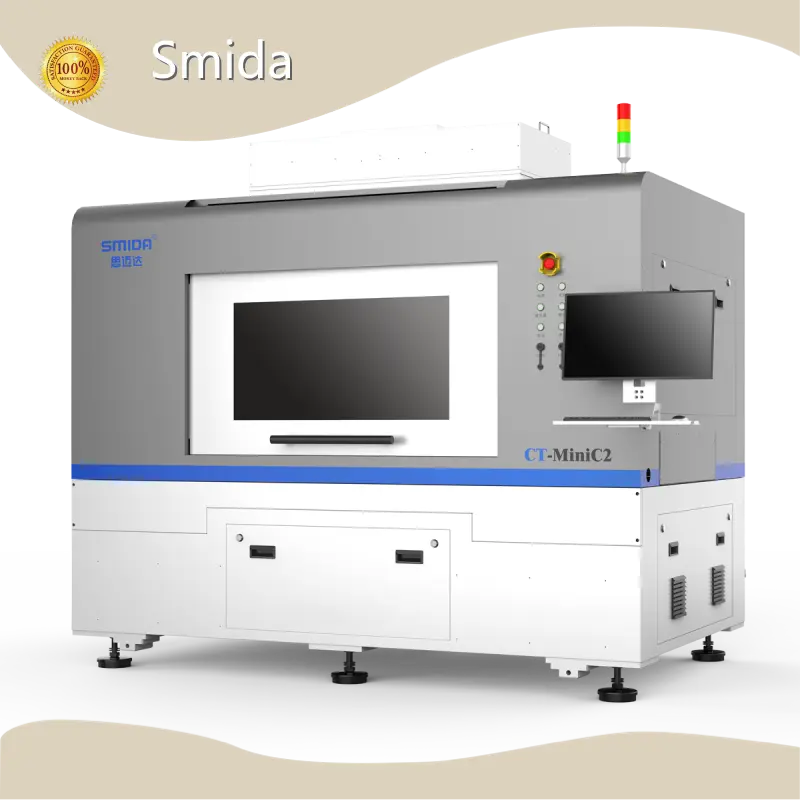

About CT-MiniC2
CT-MiniC2 is an offline laser sub board machine.
We use fiber lasers with good optical modes and long lifetimes, which can cut metal materials below 2mm. The laser power can be selected according to the cutting material.
The manual loading and unloading work mode is easy to operate, highly adaptable, and can be upgraded to an online work mode.
Performance index
| Platform structure | marble+linear motor |
| Positioning accuracy | ± 3um |
| Repetitive positioning accuracy | ± 1.5um |
| X/Y resolution | 0.2um |
| CCD resolution | 5 million pixels |
| Scanning function | optional |
| X-axis travel | 1340mm |
| Y-axis travel | 680mm |
| Z-axis travel | 100mm |
| X. Y-axis maximum speed | 1000mm/s |
| XY maximum acceleration | 1.5G |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Technical Parameter
Offline laser sub-board machine
CT-MiniC2
| Configuration indicators | Parameter |
| Cutting heads | 2D/3D cutting head optional |
| Working mode | Manual loading and unloading of materials |
| Cutting system | SMIDA |
| File formats | dxf format |
| MES system connection | Reserved interface, optional with customized information collection |
| Industrial vacuum cleaning system | Standard configuration |
| High-pressure air source (dry filtered air) | 1.2Mpa-1.5Mpa |
| Air source (dry filtered air) | 0.5-0.6Mpa |
| Working height | 900±30mm |
| Rated voltage of main equipment power supply | 220V/50Hz |
| Industrial vacuum power supply | 380V/50Hz |
| Main equipment dimensions (L*W*H) | 2405x1560x2140(mm) |
| Weight | 2400kg |
| Total power | 9.3kW/h (including vacuum cleaner) |
| Work environment | Temperature 25 ℃± 2 ℃; Humidity ≤ 60% |
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Application
Metal materials such as aluminum substrate, copper substrate, aluminum alloy, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Company Information
For many years, Shenzhen Smida Intelligent Equipment Co., Ltd., with a well-known reputation, has invested many efforts in R&D, manufacturing, and marketing of laser cutter supplier. One of the strengths of our company comes from having a factory that is strategically located. We have adequate access to workers, transportation, materials, and so on. Looking ahead, Smida will continue to provide quality services to consumers. Ask!
We can provide you with high-quality products and look forward to your cooperation with us.
