High-quality Laser Cutter Supplier Company
Product details of the laser cutter supplier
Product Information
Smida laser cutter supplier is crafted by a team of highly skilled technicians. We have a complete set of quality assurance system and sophisticated testing equipment to ensure its quality. It has been proved that Shenzhen Smida Intelligent Equipment Co., Ltd. is getting more and more popularity.
● Mixing of material using 2 centrifugal forces in a short time.
● Mixing capacity varies from a few grams up to 4kg.
● Up to 20 preset programs for different types of the materials.
● Max. rotation speed is 2500rpm for high viscosity material.
● The key parts are all imported and the big brand in the industry.
● Some functions can be modified accrding to customer's request.
Product Advantages
The Benefits of Using a Smida LED Glue Planetary Centrifugal Mixer
1. High-Quality Outcomes:
The LED glue planetary centrifugal mixer ensures thorough mixing through its high-speed planetary motions that generate two strong centrifugal forces. Its advanced vacuum capability allows for effective deaeration, eliminating trapped air bubbles that can compromise the quality of your final product. These features result in uniform consistency across all batches. Additionally, the non-invasive mixing process minimizes the risk of cross-contamination, thus maintaining product purity.
2. High Efficiency:
This planetary centrifugal mixer excels in efficiency by simultaneously mixing and defoaming, which drastically cuts down processing time. With a maximum rotation speed of 2500 RPM, it quickly achieves optimal results without the need for invasive components like paddles or blades, which eliminates the need for frequent cleaning. This not only streamlines operations but also minimizes material waste, ensuring maximum output.
3. Broad Application:
The planetary centrifugal mixer comes with up to 20 preset programs tailored to different material, allowing for quick adjustments to suit various applications. Furthermore, certain functions can be customized based on your specific requests.
4. Scalability:
The LED glue planetary centrifugal mixer can process quantities ranging from just a few grams up to 4 kilograms. This adaptability makes it ideal for both small-scale projects and larger production runs, accommodating the evolving needs of your business while ensuring consistent quality.
Product Description
Shenzhen Smidalntelligent Equipment Co.Ltd.
Automation Equipment One stop solution provider
Smida is a company with more than 10 years of production and R&D experience in the professional intelligent equipment. It is a national high-tech enterprise that integrates automation solution consulting, R&D, manufacturing, and after-sales service. We win a number of foreign trade export certification and patents, and has cooperated with many enterprises.

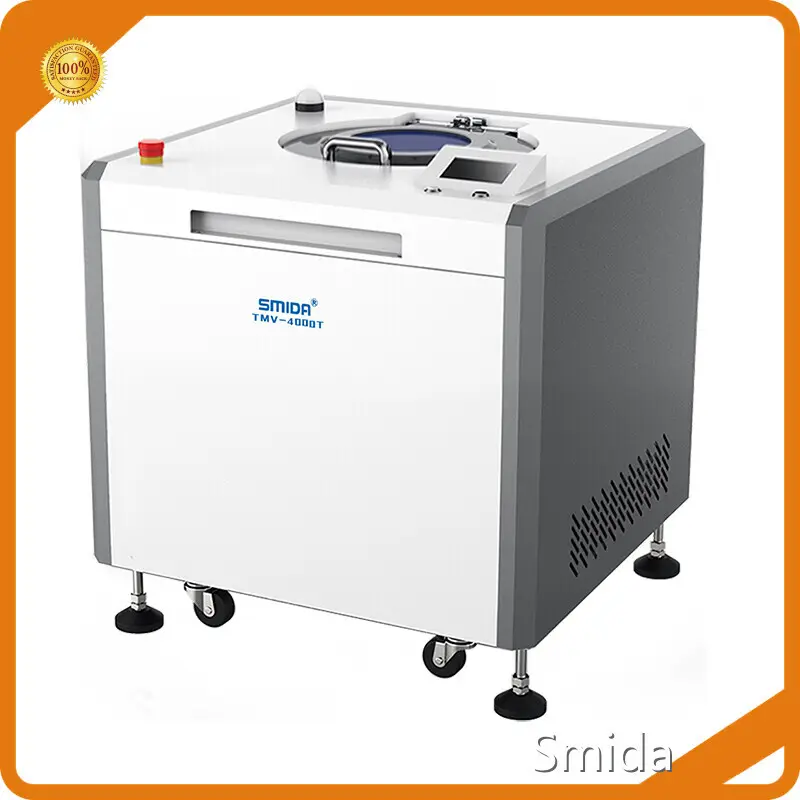

Technical Parameter
|
Product Name |
Planetary centrifugal mixer |
|
Model |
TMV-4000T |
|
Working mode |
Rotation, revolution, non-contact, vacuum |
|
Max. mixing capacity |
4L/4kg (2cups) |
|
Operating speed |
Revolution: 100-2500rpm, rotation: fixed ratio of revolution to rotational speed |
|
Max. running time |
30mins |
|
Display method |
LCD |
|
Power Supply |
AC380V, 50Hz/60Hz |
|
Power |
5kW |
|
Equipment size |
950*950*1050mm |
|
Equipment weight |
410kg |
Application
This planetary centrifugal mixer can handle a wide variety of materials, including polyurethanes, epoxies, acrylics, silicone, and those that cure with UV light exposure. It can process formulations with different viscosity, whether they are filled or unfilled, and even those that require good thermal conductivity.
It is especially effective in the following application areas:
Glue for Electrical & Communication Products
LED products and lighting assemblies
Electronic components and integrated circuits
Power connectors and switches
Electrical insulation and protective coatings
Mobile phone casing bonding
Computers and peripheral devices
Networking equipment
Other Typical Applications
Adhesives and coatings
Medical materials
Energy materials
Cosmetic pigments
Ointments
Inks
